Q-1V04H000R.25M
ActiveAmphenol Custom Cable

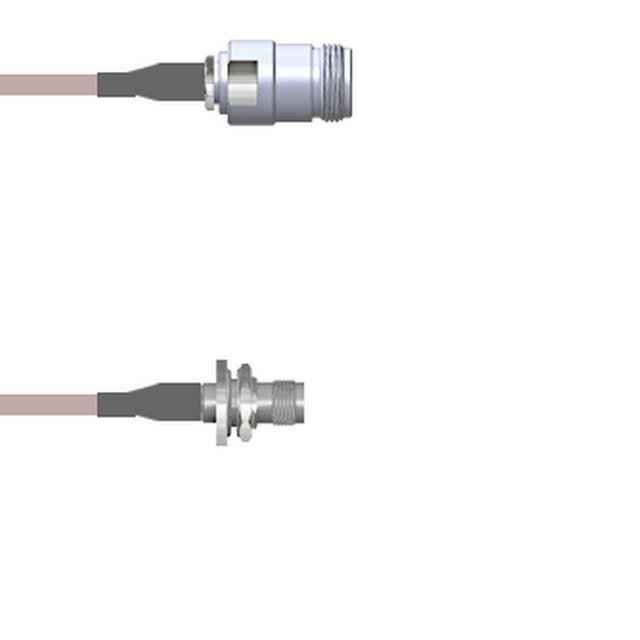

CBL ASSY NTYPE-TNC JK-JK 9.843"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1V04H000R.25M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC JK-JK 9.843"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1V04H000R.25M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 DB |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Overall Impedance | 50 Ohms |
Q-1V04H0 Series
| Part | Cable Type | 1st Connector Mounting Type | 1st Connector | 1st Contact Gender | Length | Length | 2nd Connector Mounting Feature | Frequency - Max [Max] | 2nd Connector | Color | 2nd Connector Mounting Type | 2nd Contact Gender | Features | Overall Impedance | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 152.4 mm | 6 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | |||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 2.1 m | 84 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 7 ft | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 3 m | 118.1 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 9.8 ' | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 9.843 " | 250 mm | |||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 1200 mm | 48 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 4 ft | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 1.8 m | 72 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 6 ft | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 91.44 cm | 36 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | |||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 2 m | 78.7 in | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 6.6 ft | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 1.5 m | 5 ' | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms | 5 ft | ||
Amphenol Custom Cable | RG-316 DB | Free Hanging (In-Line) | N-Type Jack | Female | 609.6 mm | 24 " | Bulkhead - Front Side Nut | 11 GHz | TNC Jack | Copper | Panel Mount | Female | Shielded | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 158.03 | |
| 25 | $ 156.85 | |||
| 50 | $ 155.67 | |||
| 100 | $ 154.49 | |||
| 250 | $ 153.31 | |||
Description
General part information
Q-1V04H0 Series
Cable Assembly Coaxial N-Type to TNC RG-316 DB 9.843" (250.00mm)
Documents
Technical documentation and resources
No documents available
