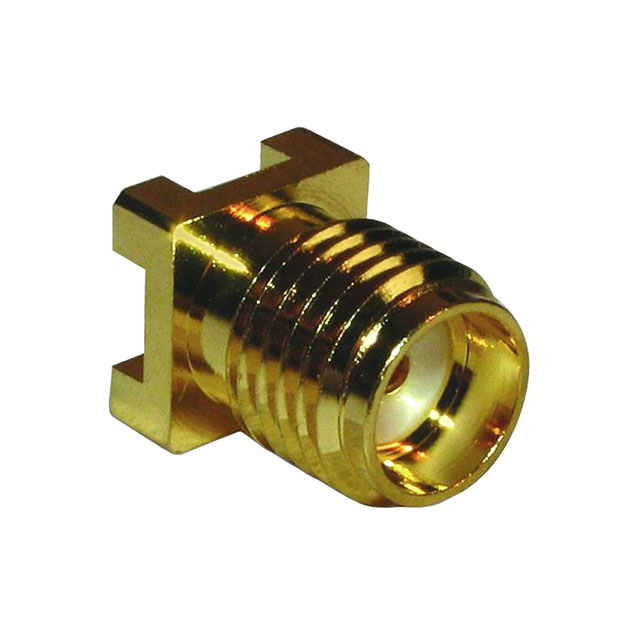

132134-10

Active

Amphenol RF

CONN SMA JACK STR 50 OHM SMD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA JACK STR 50 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	132134-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Mounting Type	Connector Style	Impedance	Contact Termination	Dielectric Material	Shield Termination	Connector Type	Body Material	Number of Ports	Center Contact Material	Center Contact Plating	Mating Cycles	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Housing Color	Frequency - Max [Max]
Amphenol RF 132134RP	Through Hole	RP-SMA	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Solder	Jack Male Pin	Brass	1	Brass	Gold	500	375 V	-65 ░C	165 °C	Gold	Gold
Amphenol RF 132134-10	Surface Mount	SMA	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	Brass	1	Beryllium Copper	Gold	500		-65 ░C	165 °C	Gold	Gold	18 GHz
Amphenol RF 132134-11	Through Hole	SMA	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	Brass	1	Beryllium Copper	Gold	500		-65 ░C	165 °C	Gold	Gold	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Surface Mount Solder
