5604028

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 5A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE 4PDT 5A 24V

Part	Coil Resistance	Load - Max Switching	Features	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Coil Type	Switching Voltage	Mounting Type	Coil Current	Relay Type	Must Release Voltage	Termination Style	Contact Rating (Current)	Contact Form
Phoenix Contact 5604028	650 Ohms	150 W, 1200 VA	Diode, Socket Included	24 VDC	-40 °C	70 °C	18 VDC	Non Latching	30 VDC, 240 VAC	DIN Rail	36.9 mA	General Purpose	2.4 VDC	Screw Terminal	5 A	4PDT (4 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

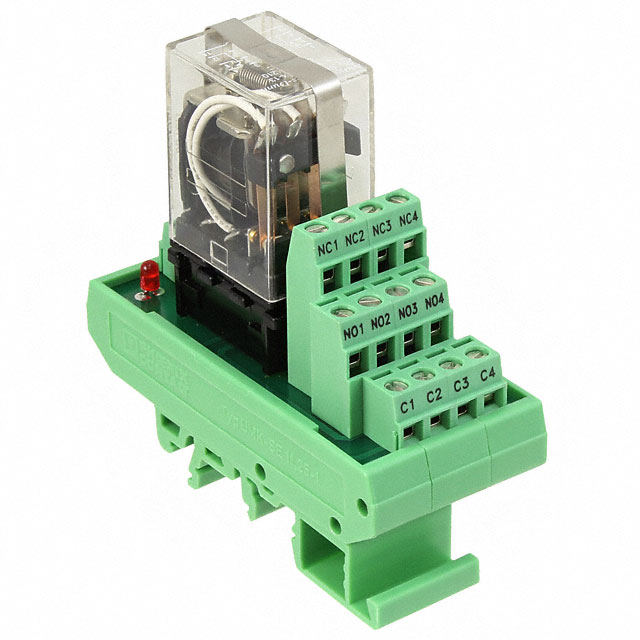

General Purpose Relay 4PDT (4 Form C) 24VDC Coil DIN Rail

Technical documentation and resources

No documents available
