HDAF-15-08.0-S-13-2

Active

Samtec Inc.

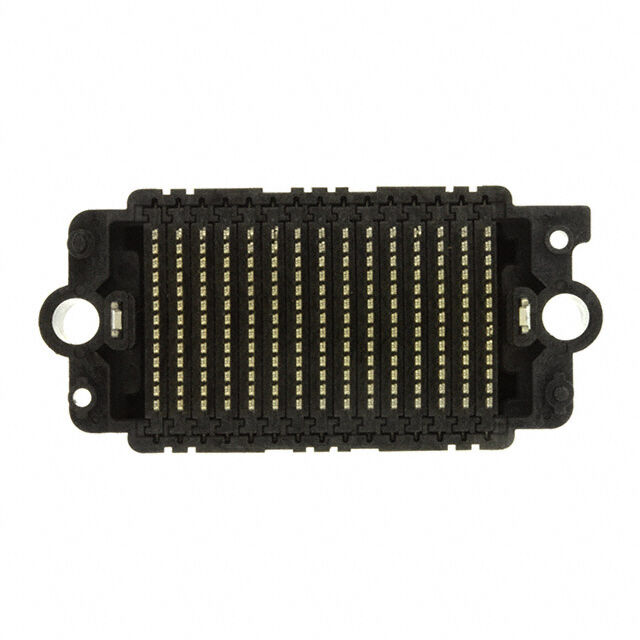

CONN HD ARRAY RCPT 195P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 195P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Features	Mounting Type	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Height Above Board	Height Above Board
Samtec Inc. HDAF-15-18.0-S-13-2	Gold	Board Guide	Surface Mount	195	13	0.76 Ám	30 Áin	20.51 mm	0.807 "	30 mm 35 mm	1.2 mm	0.047 in	High Density Array Female
Samtec Inc. HDAF-15-18.0-S-13-1	Gold	Board Guide	Surface Mount	195	13	0.76 Ám	30 Áin	20.51 mm	0.807 "	30 mm 35 mm	1.2 mm	0.047 in	High Density Array Female
Samtec Inc. HDAF-15-08.0-S-13-2	Gold	Board Guide	Surface Mount	195	13	0.76 Ám	30 Áin			20 mm 25 mm	1.2 mm	0.047 in	High Density Array Female	0.414 in	10.51 mm
Samtec Inc. HDAF-15-08.0-S-13-1	Gold	Board Guide	Surface Mount	195	13	0.76 Ám	30 Áin			20 mm 25 mm	1.2 mm	0.047 in	High Density Array Female	0.414 in	10.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 37.68

General part information

195 Position Connector High Density Array, Female Surface Mount Gold
