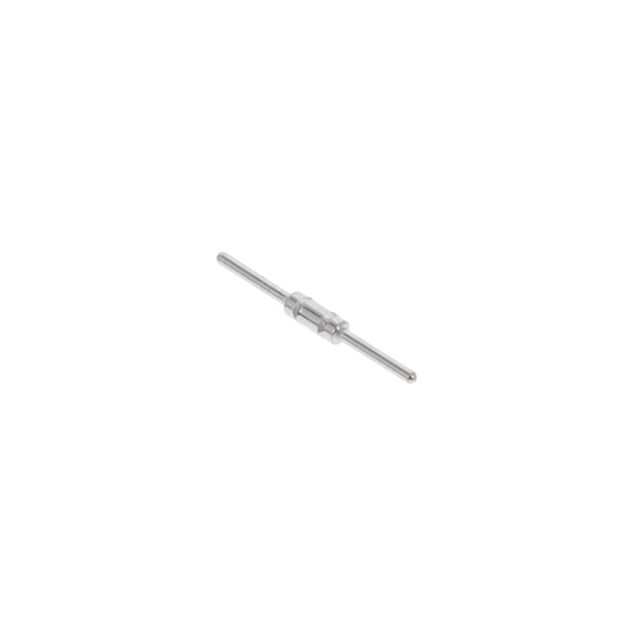

4006-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
4006-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4006-0-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.118 in |
| Length - Above Flange [x] | 3 mm |
| Length - Below Flange [x] | 0.118 in |
| Length - Below Flange [x] | 3 mm |
| Length - Overall [x] | 0.319 in |
| Length - Overall [x] | 8.1 mm |
| Mounting Hole Diameter [diameter] | 0.86 mm |
| Mounting Hole Diameter [diameter] | 0.034 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.41 mm |
| Pin Size - Above Flange [diameter] | 0.016 in |
| Pin Size - Below Flange [diameter] | 0.016 in |
| Pin Size - Below Flange [diameter] | 0.41 mm |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 3000 | $ 0.37 | |||
Description
General part information
4006-0 Series
PC Pin Terminal Connector Through Hole Tin 0.016" (0.41mm) Dia
Documents
Technical documentation and resources
No documents available
