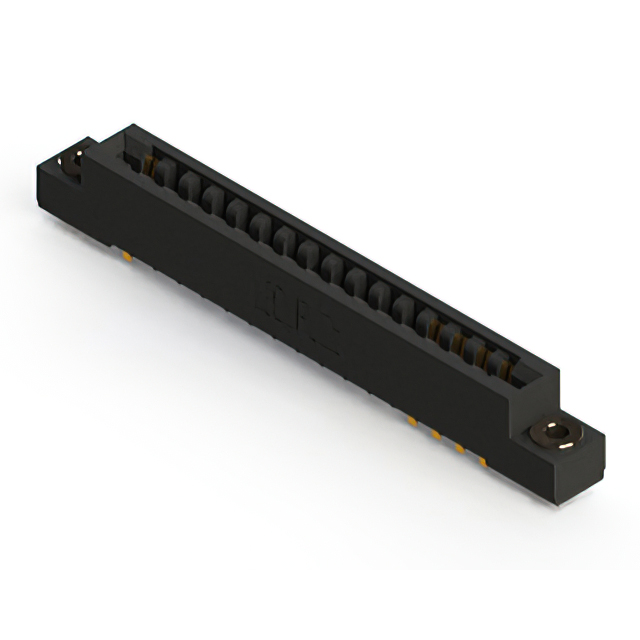

357-032-520-203

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-032-520-203

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-032-520-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	16
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

357-032 Series

...

Part	Read Out	Contact Type	Card Type	Features	Gender	Color	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination Rows	Number of Rows	Contact Material	Material - Insulation	Number of Positions/Bay/Row [custom]	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions
EDAC Inc. 357-032-545-168	Single	Semi Bellows	Non Specified - Single Edge	Card Guides	Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	1	1	Copper Alloy	Polyester Thermoplastic	32	Wire Wrap
EDAC Inc. 357-032-559-212	Dual	Semi Bellows	Non Specified - Dual Edge		Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole Right Angle	2	2	Copper Alloy	Polyester Thermoplastic	16	Solder	3.25 mm	0.128 "
EDAC Inc. 357-032-541-102	Dual	Semi Bellows	Non Specified - Dual Edge		Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	1	2	Copper Alloy	Polyester Thermoplastic	32	Wire Wrap	3.25 mm	0.128 "	64
EDAC Inc. 357-032-524-208	Dual	Semi Bellows	Non Specified - Dual Edge		Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	2	2	Copper Alloy	Polyester Thermoplastic	16	Solder
EDAC Inc. 357-032-559-268	Dual	Semi Bellows	Non Specified - Dual Edge	Card Guides	Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole Right Angle	2	2	Copper Alloy	Polyester Thermoplastic	16	Solder
EDAC Inc. 357-032-525-168	Single	Semi Bellows	Non Specified - Single Edge	Card Guides	Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	1	1	Copper Alloy	Polyester Thermoplastic	32	Solder
EDAC Inc. 357-032-458-178	Single	Semi Bellows	Non Specified - Single Edge	Card Guides	Female	Black	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C			Through Hole Right Angle	1	1	Copper Alloy	Polyester Thermoplastic	32	Solder
EDAC Inc. 357-032-401-107	Dual	Semi Bellows	Non Specified - Dual Edge		Female	Black	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount M3 Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C			Through Hole	1	2	Copper Alloy	Polyester Thermoplastic	32	Solder Eyelet(s)			64
EDAC Inc. 357-032-559-258	Dual	Semi Bellows	Non Specified - Dual Edge	Card Guides	Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole Right Angle	2	2	Copper Alloy	Polyester Thermoplastic	16	Solder
EDAC Inc. 357-032-520-203	Dual	Semi Bellows	Non Specified - Dual Edge		Female	Black	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	0.156 in	3.96 mm	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	2	2	Copper Alloy	Polyester Thermoplastic	16	Solder	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.55
Newark	Each	1	$ 15.19
		100	$ 10.53
		250	$ 8.77
		500	$ 7.07
		1000	$ 4.93

Description

General part information

357-032 Series

32 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
