ActiveMULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 12 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Search across all available documentation for this part.
29502 010100
ActiveMULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 12 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29502 010100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 65 |
| Features | Oil Resistant, UV Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.63 in |
| Jacket (Insulation) Diameter [diameter] | 16 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.854 mm |
| Jacket (Insulation) Thickness | 0.073 in |
| Jacket Color | Black |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Variable Frequency Drive (VFD), Motor Supply |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Spool of 100 | 1 | $ 1136.12 | |
| 5 | $ 1092.18 | |||
| 10 | $ 1054.52 | |||
Description
General part information
29502 Series

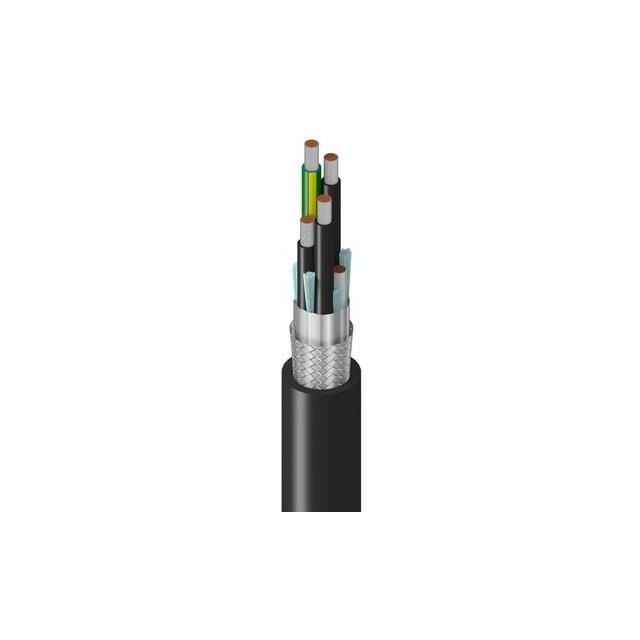

The 29502 010100 is a 100ft 4-conductor shielded flexible Motor Supply Cable with stranded tinned copper circuit conductors and ground wire, PVC and XLP insulation, overall Duofoil® aluminum foil-polyester tape (100% coverage) plus a tinned copper braid shield (85% coverage) and sun-/oil-resistant black PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
