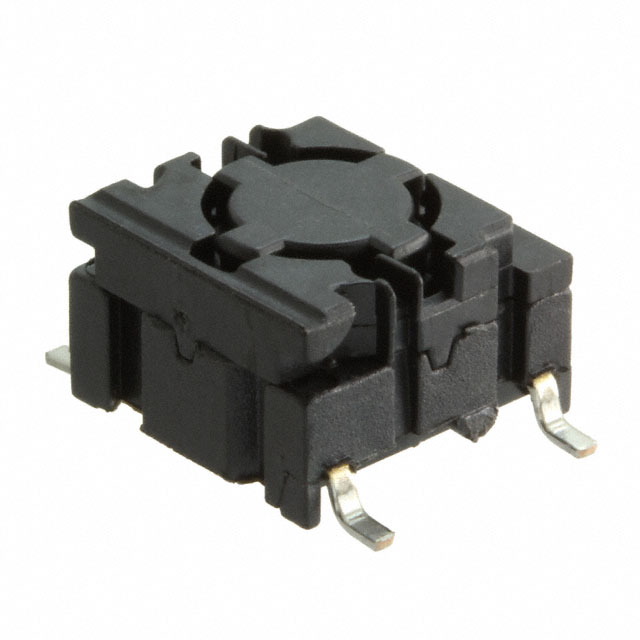

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

5GSH935

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5GSH935

Actuator Height off PCB, Vertical [z]	6.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Surface Mount
Operating Force	350 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	Gull Wing

5GSH Series

Part	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Rating @ Voltage	Switch Function	Switch Travel	Actuator Material	Illumination	Termination Style	Mechanical Life	Operating Force	Mounting Type	Illumination Type, Color	Actuator Type	Circuit	Illumination Voltage (Nominal)	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Ingress Protection
MEC Switches 5GSH93542	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount	LED Yellow	Plunger for Cap	SPST-NO	2 VDC	6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH93501	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount	Blue LED	Plunger for Cap	SPST-NO		6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH965	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Gull Wing	10000000 Cycles	650 gf	Surface Mount		Plunger for Cap	SPST-NO		6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH93522	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount	Green LED	Plunger for Cap	SPST-NO	2.2 VDC	6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH920	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Gull Wing	10000000 Cycles	200 gf	Surface Mount		Plunger for Cap	SPST-NO		6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH935	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Non-Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount		Plunger for Cap	SPST-NO		6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH93529	10.1 mm	10.1 mm	-40 °C	160 °C		0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount	Green LED	Plunger for Cap	SPST-NO	3.3 VDC	6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof
MEC Switches 5GSH9358222	10.1 mm	10.1 mm	-40 °C	160 °C	Sealed - Flux Protection	0.05 A 24 VDC	Off-Mom	1 mm	Polyphenylene Sulfide (PPS)	Illuminated	Gull Wing	10000000 Cycles	350 gf	Surface Mount	Green/Red LED	Plunger for Cap	SPST-NO	2 VDC 2.2 VDC	6.4 mm	Top Actuated	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.49
		10	$ 3.35
		50	$ 2.84
		100	$ 2.65
		250	$ 2.40
		500	$ 2.23
		1000	$ 2.07
		2500	$ 1.88
		5000	$ 1.80

Description

General part information

5GSH Series

Tactile Switch SPST-NO Top Actuated Surface Mount
