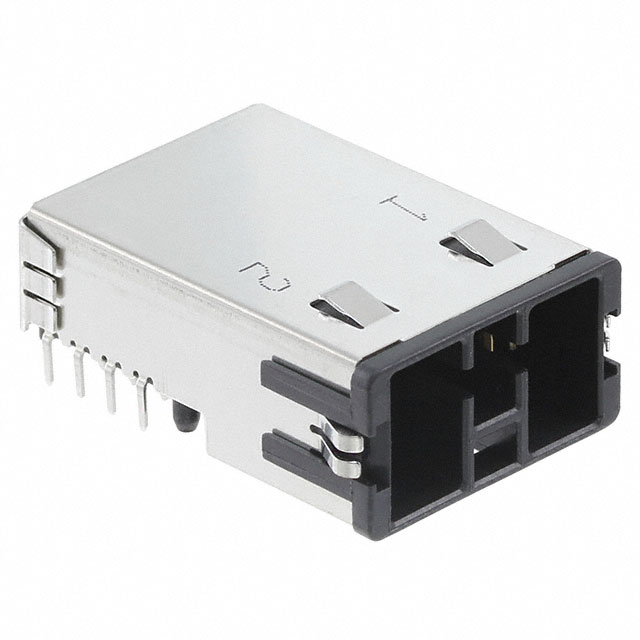

10089872-101LF

Active

Amphenol ICC (FCI)

CONN HEADER 4POS EDGE MNT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER 4POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	10089872-101LF

Color	Black
Connector Type	Header, Male Pins and Blades
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	2 Signal, 2 Power
Current Rating (Amps)	37 A
Features	Shielded, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	4
Number of Positions Loaded	All
Termination	Solder
Voltage Rating	300 VDC

Part	Connector Style	Mounting Type	Contact Layout, Typical	Termination	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Features	Connector Type	Color	Number of Positions Loaded	Voltage Rating
Amphenol ICC (FCI) 10089872-102LF	Power	Panel Mount Right Angle Through Hole	2 Power	Solder	2	UL94 V-0	105 ░C	-55 °C	0.76 Ám	30 Áin	37 A	Board Guide Shielded	Receptacle Female Blade Sockets	Black	All
Amphenol ICC (FCI) 10089872-101LF		Board Edge Right Angle Through Hole	2 Power 2 Signal	Solder	4	UL94 V-0			0.76 Ám	30 Áin	37 A	Board Guide Shielded	Header Male Pins and Blades	Black	All	300 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 21.06
	Digi-Reel®	1	$ 21.06
	Tape & Reel (TR)	250	$ 11.62

General part information

4 Connector Header, Male Pins and Blades Board Edge, Through Hole, Right Angle Black
