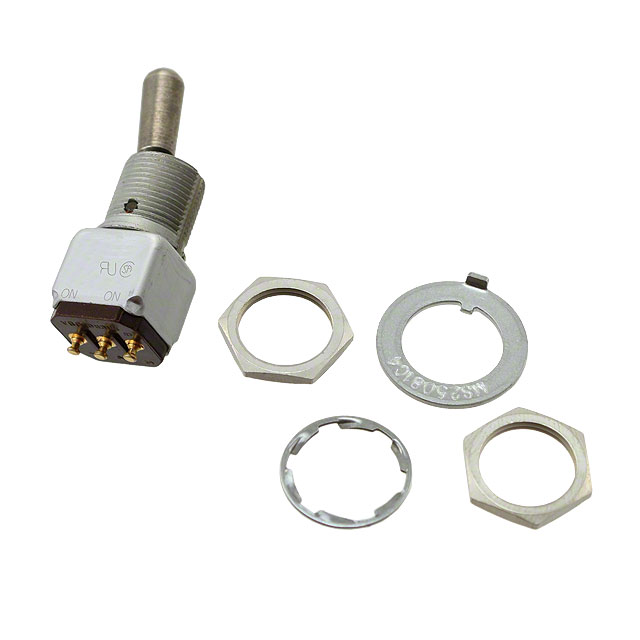

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicro-Toggle Switch, Line Guide Datasheet

11TW1-8

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 5A 125V

Deep-Dive with AI

DocumentsMicro-Toggle Switch, Line Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 76.00
		10	$ 65.53
		25	$ 61.77
		50	$ 59.06
		100	$ 57.84

Description

General part information

11TW1 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

Micro-Toggle Switch, Line Guide

Datasheet

Specification	11TW1-8	11TW1 Series

Actuator Length [x]	17.27 mm	1 - 29.46 mm
Actuator Material	-	Thermoplastic
Actuator Type	Standard Round	Locking Lever, Standard Round, Flatted
Bushing Thread	15/32-32	15/32-32
Circuit	SPDT	SPDT, SPST, SPST-NO
Current Rating (Amps)	5 A	5 A
Features	-	Black Actuator
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-Mom	On-Off-On, On-Off, On-Mom, Mom-Off-Mom, Off-Mom, On-Off-Mom, On-On
Termination Style	Solder Turret	Solder Turret
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	28 V	28 V

Part	Ingress Protection	Circuit	Actuator Length [x]	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Switch Function	Illumination	Actuator Material	Features
Honeywell Sensing and Productivity Solutions 11TW1-1D	Environment Sealed	SPDT	29.46 mm	125 V	Locking Lever	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-Off-On	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW1-2G	Environment Sealed	SPST	29.46 mm	125 V	Locking Lever	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-Off	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW1-8	Environment Sealed	SPDT	17.27 mm	125 V	Standard Round	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-Mom	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW105-7	Environment Sealed	SPDT	17.27 mm	125 V	Standard Round	12.4 mm	Solder Turret		5 A	71 °C	-65 ░C	15/32-32	Mom-Off-Mom	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW1-261	Environment Sealed	SPST-NO	17.27 mm	125 V	Standard Round	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	Off-Mom	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW1-5M	Environment Sealed	SPDT	29.46 mm	125 V	Locking Lever	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-Off-Mom	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW1-2D	Environment Sealed	SPST	29.46 mm	125 V	Locking Lever	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-Off	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW19-7-A005	Environment Sealed	SPDT	1 in	125 V	Flatted	12.4 mm	Solder Turret		5 A	71 °C	-65 ░C	15/32-32	Mom-Off-Mom	Non-Illuminated	Thermoplastic
Honeywell Sensing and Productivity Solutions 11TW1-3	Environment Sealed	SPDT	17.27 mm	125 V	Standard Round	12.4 mm	Solder Turret	28 V	5 A	71 °C	-65 ░C	15/32-32	On-On	Non-Illuminated
Honeywell Sensing and Productivity Solutions 11TW19-2-A002	Environment Sealed	SPST	1 in	125 V	Flatted	12.4 mm	Solder Turret		5 A	71 °C	-65 ░C	15/32-32	On-Off	Non-Illuminated	Thermoplastic	Black Actuator
