LDD-SMHTA302RISUGT

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.3" DBL GRN 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

LDD-SMHTA302RISUGT

Active

Lumex Opto/Components Inc.

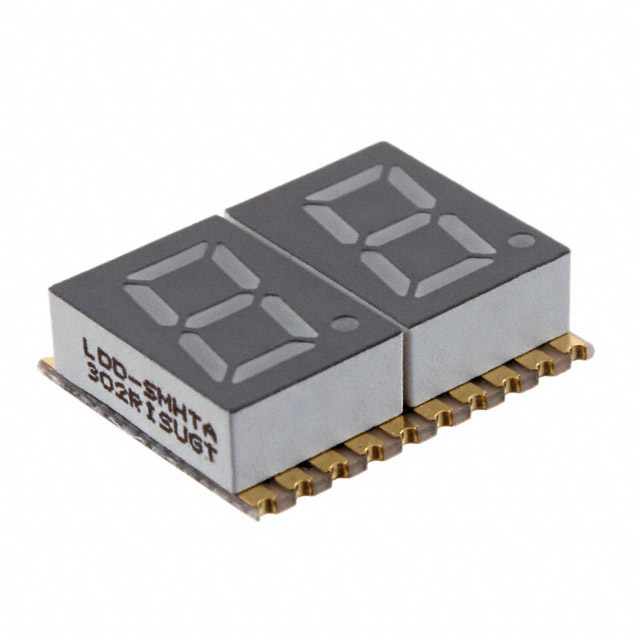

DISPLAY 7SEG 0.3" DBL GRN 20SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-SMHTA302RISUGT

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	2.5 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max)	65 mW
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	0.583 in
Size / Dimension [y]	14.8 mm
Size / Dimension [z]	0.157 "
Size / Dimension [z]	4 mm
Voltage - Forward (Vf) (Typ)	2.25 V
Wavelength - Peak	568 nm

LDD-SMHTA302 Series

DISPLAY 7SEG 0.3" DBL GRN 20SMD

Part	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Display Type	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Package / Case	Current - Test	Number of Characters	Millicandela Rating	Power Dissipation (Max)	Color	Common Pin
Lumex Opto/Components Inc. LDD-SMHTA302RISUGT	568 nm	0.583 in	0.157 "	0.394 "	14.8 mm	10 mm	4 mm	7-Segment	0.3 in	7.62 mm	2.25 V	20-SMD, No Lead	20 mA	2	2.5 mcd	65 mW	Green	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.73
	Digi-Reel®	1	$ 3.73
	Tape & Reel (TR)	2700	$ 1.60
		6300	$ 1.57

Description

General part information

LDD-SMHTA302 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.25V 20mA 0.394" H x 0.583" W x 0.157" D (10.00mm x 14.80mm x 4.00mm) 20-SMD, No Lead
