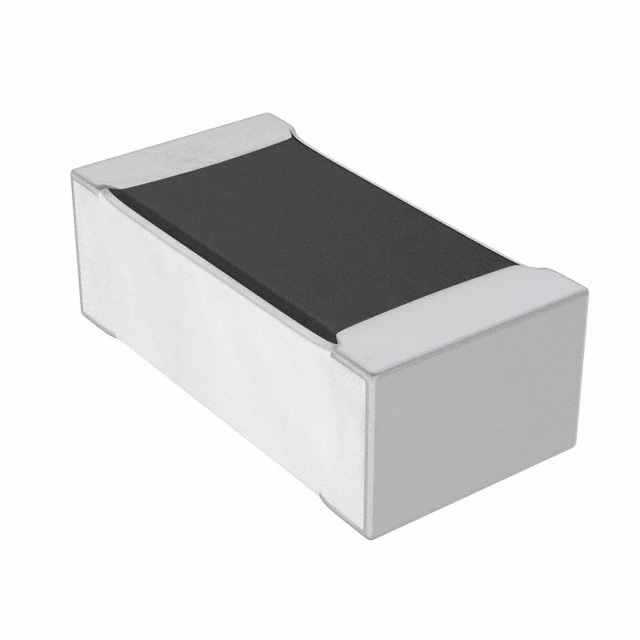

PCF0603-12-13K7BT1

Unknown

TT Electronics/Welwyn

RES SMD 13.7KOHM 0.1% 1/16W 0603

Search across all available documentation for this part.

Unknown

TT Electronics/Welwyn

RES SMD 13.7KOHM 0.1% 1/16W 0603

Technical Specifications

Parameters and characteristics commom to parts in this series

RES SMD 3.48KOHM 0.1% 1/16W 0603

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Number of Terminations	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Composition	Tolerance	Resistance	Power (Watts)	Power (Watts)
TT Electronics/Welwyn PCF0603R-3K48BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	25 ppm/°C	Metal Film	0.1 %	3.48 kOhms	0.0625 W	0.063 W
TT Electronics/Welwyn PCF0603R-53K6BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	25 ppm/°C	Metal Film	0.1 %	53.6 kOhms	0.0625 W	0.063 W
TT Electronics/Welwyn PCF0603-12-13K7BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	10 ppm/°C	Metal Film	0.1 %	13.7 kOhms	0.0625 W	0.063 W
TT Electronics/Welwyn PCF0603R-8K25BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	25 ppm/°C	Metal Film	0.1 %	8.25 kOhms	0.0625 W	0.063 W
TT Electronics/Welwyn PCF0603R-1K02BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	25 ppm/°C	Metal Film	0.1 %	1.02 kOhms	0.0625 W	0.063 W
TT Electronics/Welwyn PCF0603PR-5K6BT1	0.026 in	0.65 mm	0603 (1608 Metric)	2	0.8 mm	0.063 in	1.6 mm	0.031 in	-55 °C	125 °C	25 ppm/°C	Metal Film	0.1 %	5.6 kOhms	0.0625 W	0.063 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13.7 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Metal Film
