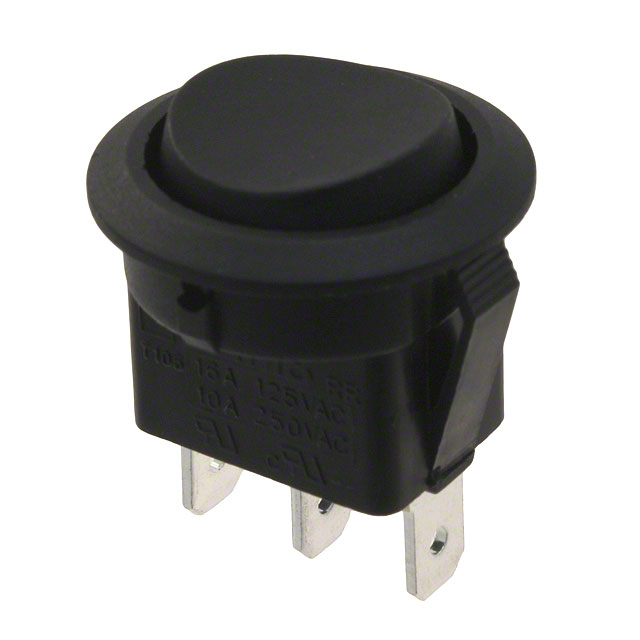

RR115C1100
ActiveE-Switch
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RR115C1100
ActiveE-Switch
SWITCH ROCKER SPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RR115C1100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Approval Agency | UL, VDE, cUL |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.98 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.75 | |||
| 300 | $ 0.72 | |||
| 500 | $ 0.68 | |||
Description
General part information
RR115C1 Series
Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
