103670-8
ActiveTE Connectivity AMP Connectors

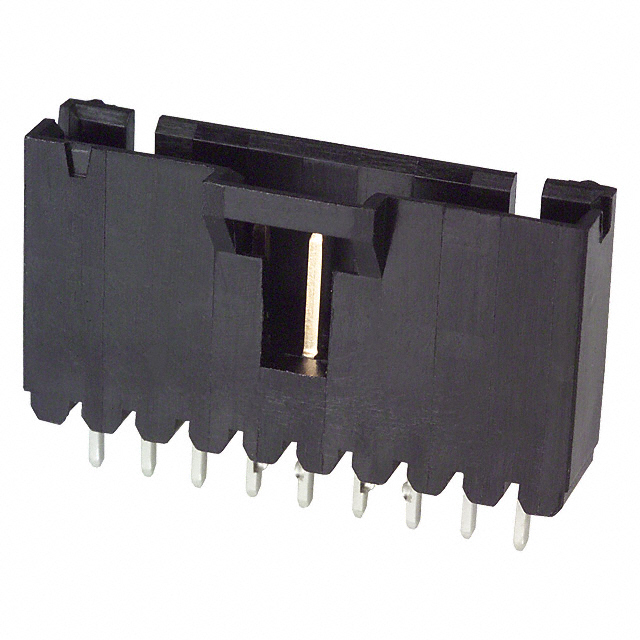

CONN HEADER VERT 9POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103670-8
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 9POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103670-8 | 103670 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 9 | 7 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
| Voltage Rating | 267 V | 267 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3024 | $ 0.93 | |
103670 Series
CONN HEADER VERT 9POS 2.54MM
| Part | Number of Rows | Applications | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Mounting Type | Number of Positions | Contact Shape | Style | Current Rating (Amps) | Contact Finish - Post | Contact Material | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Mating | Features | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions Loaded | Termination | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Shrouding | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103670-8 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 9 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 103670-6 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 7 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 1-103670-3 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 14 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 1-103670-0 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 11 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 2-103670-3 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 24 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 103670-9 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 10 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 1-103670-1 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 12 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 1-103670-7 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 18 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 103670-2 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header | |
TE Connectivity AMP Connectors 103670-4 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header | |
TE Connectivity AMP Connectors 2-103670-4 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header | |
TE Connectivity AMP Connectors 1-103670-4 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 15 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
TE Connectivity AMP Connectors 1-103670-9 | 1 | Automotive, General Purpose, Medical, Telecommunications | Male Pin | -65 ░C | 105 ░C | Thermoplastic | Through Hole | 20 | Square | Board to Board, Cable | 3 A | Tin-Lead | Brass | 0.23 in | 5.84 mm | Gold | Keying Slot | Black | 0.1 in | 2.54 mm | 13.6 mm | 0.535 in | All | Press-Fit, Solder | 267 V | 15 µin | 0.38 µm | Latch Holder | Shrouded - 4 Wall | 0.13 in | 3.3 mm | 2.54 µm | 100 µin | UL94 V-0 | Header |
Description
General part information
103670 Series
Connector Header Through Hole 9 position 0.100" (2.54mm)
Documents
Technical documentation and resources
