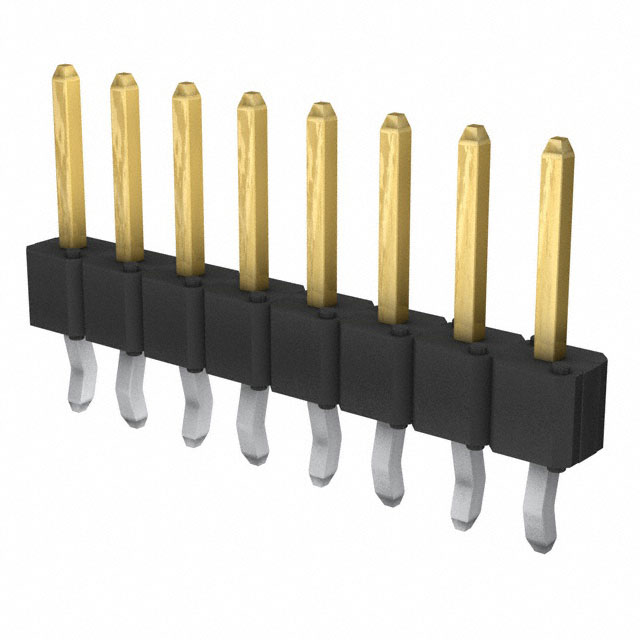

10125878-208003ALF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 8POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10125878-208003ALF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Kinked Pin, Solder

Part	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Features	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Fastening Type	Mounting Type	Insulation Color	Shrouding	Contact Material	Number of Rows	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Insulation Material
Amphenol ICC (FCI) 10125878-202001ALF	0.1 in	2.54 mm	0.23 in	5.84 mm	2	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Gold or Gold GXT™	Pick and Place	0.12 in	3.05 mm	Male Pin	Push-Pull	Through Hole	Black	Unshrouded	Copper Alloy	1	All	0.45 "	11.43 mm	15 µin	0.38 µm	Kinked Pin Solder	Square	Thermoplastic
Amphenol ICC (FCI) 10125878-208003ALF	0.1 in	2.54 mm	0.23 in	5.84 mm	8	Breakaway Header	0.1 in	2.54 mm	UL94 V-0	Gold or Gold GXT™	Pick and Place	0.12 in	3.05 mm	Male Pin	Push-Pull	Through Hole	Black	Unshrouded	Copper Alloy	1	All	0.45 "	11.43 mm	15 µin	0.38 µm	Kinked Pin Solder	Square	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4800	$ 0.34
