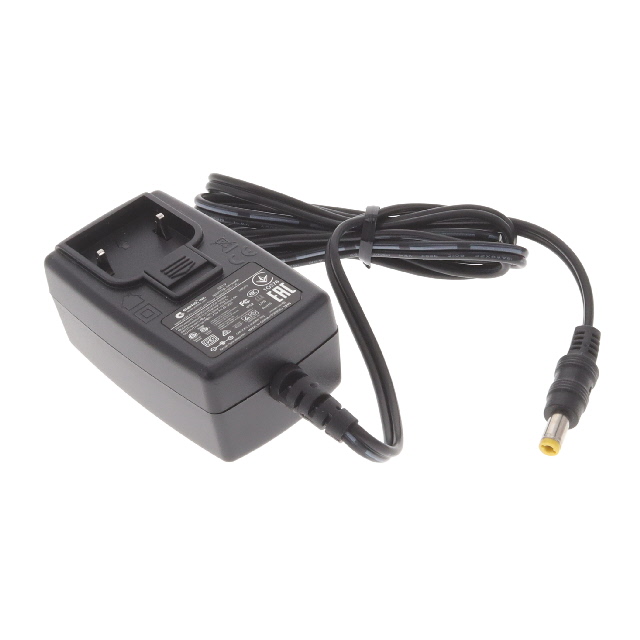

WR9QC4000CCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 7.5V 30W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MNT ADAPTER 7.5V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QC4000CCP-N(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UL, cETLus, VCCI, ETL, UKRSepro, CE, CB, PSE, CCC, FCC, LPS, EAC, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	4 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V

Part	Polarization	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Region Utilized	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [z]	Form	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Cord Length	Cord Length	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Power (Watts)
GlobTek, Inc. WR9QC4000CCP-N(R6B)	Positive Center	Multi-Blade	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Household Appliances ITE (Commercial) Medical	International	CoC Tier 2 Level VI	90 VAC	264 VAC	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	7.5 V	Barrel Plug	2.1 mm 5.5 mm	11 mm	Wall Mount (Class II)	75 mW	4 A	1.2 m	47.2 in	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	50 °C	-20 C	Multi-Blade (Sold Separately)	30 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5V 30 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
