C3519.41.02

Active

Prysmian Group

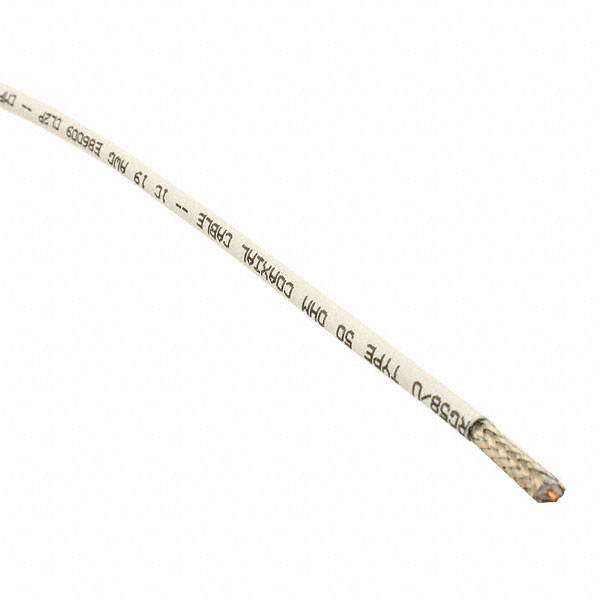

CABLE COAX PLEN RG58 19AWG 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAX PLEN RG58 19AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C3519.41.02

Cable Group	RG-58
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.102 in
Dielectric Diameter [diameter]	2.59 mm
Dielectric Material	Cellular (Foam) Fluoro-Polymer (Cellular FP)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.161 "
Jacket (Insulation) Diameter [diameter]	4.09 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Network, RF Signal
VoP, Velocity of Propagation	82
Wire Gauge	19 AWG, 0.65 mm²

Part	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Jacket (Insulation) Material	Wire Gauge	Conductor Material	VoP, Velocity of Propagation	Cable Type	Length	Length	Shield Coverage	Jacket Color	Usage	Length [x]	Length [x]	Dielectric Material	Shield Type
Prysmian Group C3519.41.86	Solid	0.161 "	4.09 mm	50 Ohms	RG-58	0.102 in	2.59 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	0.65 mm² 19 AWG	Copper Bare	82	Coaxial - Plenum	152.4 m 304.8 m	1000 ft 6000 in	95 %	Natural	Network RF Signal	100 ft	30.48 m	Cellular (Foam) Fluoro-Polymer (Cellular FP)	Braid
Prysmian Group C3519.41.02	Solid	0.161 "	4.09 mm	50 Ohms	RG-58	0.102 in	2.59 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	0.65 mm² 19 AWG	Copper Bare	82	Coaxial - Plenum	304.8 m	1000 ft	95 %		Network RF Signal			Cellular (Foam) Fluoro-Polymer (Cellular FP)	Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 19 AWG (0.65mm²) RG-58 1000.0' (304.80m) 50 Ohms

Technical documentation and resources

No documents available
