CFSA69383P-30D43F

Active

TE Connectivity Raychem Cable Protection

OMNI,DBAND,30CM,D43F 698-960,1690-4000MH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

OMNI,DBAND,30CM,D43F 698-960,1690-4000MH

Technical Specifications

Parameters and characteristics for this part

Part	Number of Bands	Frequency Group	Gain	Applications	Height (Max) [Max]	Height (Max) [Max]	Termination	Antenna Type	Frequency (Center/Band)	VSWR	RF Family/Standard	Power - Max [Max]	Features	Features	Frequency Range [Min]	Frequency Range [Max]
TE Connectivity Raychem Cable Protection CFSA69383P1-30NF	11	Wide Band	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBi 5.4 dBi	AWS DCS GSM LTE UMTS WiMax™	7.62 mm	0.3 "	N Type Female	Flat Panel	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	1.5 1.8 2	Cellular WiFi	50 W	300 mm	Cable
TE Connectivity Raychem Cable Protection CFSA69383P1-30D43F	11	Wide Band	2.4 dBi 2.6 dBi 3 dBi 3.2 dBi 3.4 dBi 4 dBi 4.2 dBi 4.3 dBi 4.4 dBi 5.4 dBi	AWS DCS GSM LTE UMTS WiMax™	7.62 mm	0.3 "	4.3/10 - Female	Flat Panel	1.45 GHz 1.785 GHz 1.92 GHz 2.045 GHz 2.4 GHz 2.6 GHz 3.55 GHz 3.9 GHz 752 MHz 859 MHz 920 MHz	1.5 1.8 2	Cellular WiFi	50 W	300 mm	Cable
TE Connectivity Raychem Cable Protection CFSA69383P-30D43F	3	Wide Band	5.8 dB	GSM LTE WiMax™	7.6 mm	0.299 in	N Type Female	Flat Panel	1.45 GHz 2.75 GHz 829 MHz	2	Cellular WiFi	50 W			1.35 GHz 1.69 GHz 698 MHz	3.8 GHz 960 MHz 1550 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 61.48

General part information

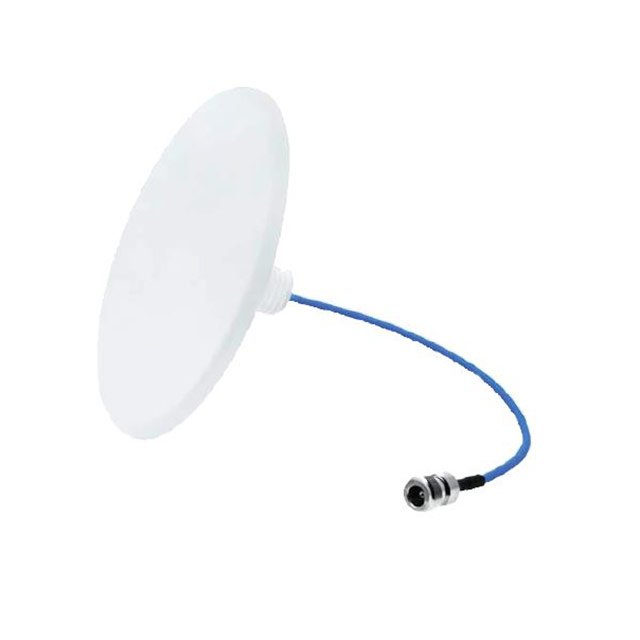

Dome/Puck Antenna, Wide Band, 5G / Cat-M/NB-IoT / DAS, Remote Mount, Wall/Ceiling Mount, 4.3-10, Omnidirectional, Single Port, CFSA Series
