M80-8691622
ActiveHarwin Inc.

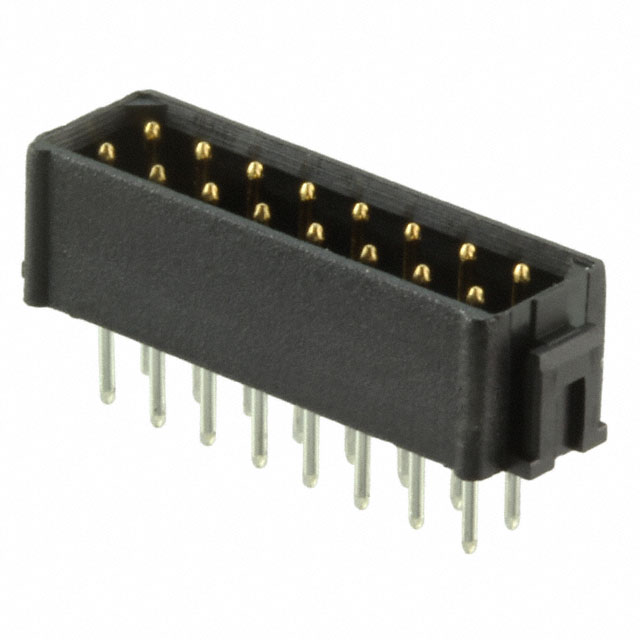

HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
M80-8691622
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8691622 |
|---|---|
| Connector Type | Plug |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Holder |
| Insulation Color | Black |
| Insulation Height | 5.56 mm |
| Insulation Height [z] | 0.219 in |
| Insulation Material | Polyester, Glass Filled |
| Mated Stacking Heights | 13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-869 Series
Connector Header Through Hole 16 position 0.079" (2.00mm)
