6-103735-0

Active

TE Connectivity AMP Connectors

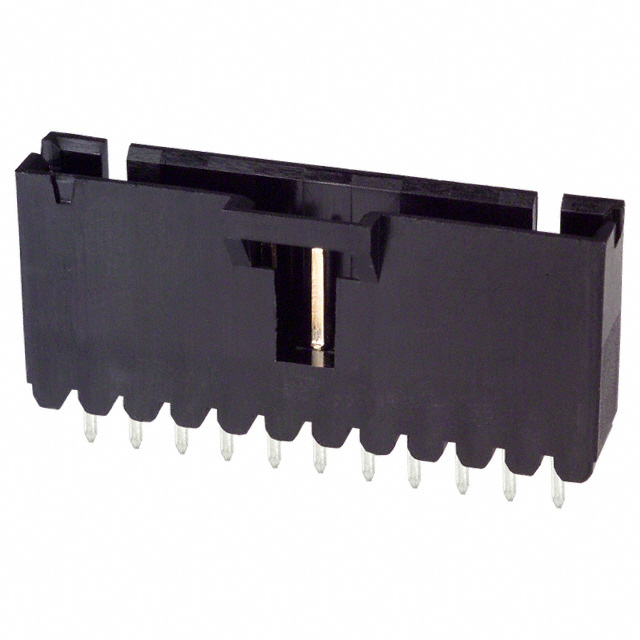

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-103735-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6-103735-0	103735 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Length - Post	0.13 in	0.13 in
Contact Length - Post	3.3 mm	3.3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	11	2 - 24
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.545 in	0.545 in
Overall Contact Length	13.84 mm	13.84 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	646	$ 2.25

103735 Series

CONN HEADER VERT 6POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Shape	Number of Positions Loaded	Contact Type	Shrouding	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions	Termination	Features	Number of Rows	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish - Post	Applications	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Fastening Type	Current Rating (Amps)	Style	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height
TE Connectivity AMP Connectors 5-103735-5	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	6	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 2-103735-3	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	24	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 6-103735-3	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	14	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 7-103735-4	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass		Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 1-103735-2	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	13	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 5-103735-4	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass		Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 6-103735-0	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	11	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 1-103735-1	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	12	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 1-103735-4	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	15	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 5-103735-2	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass		Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 1-103735-7	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	18	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 5-103735-1	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	2	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 6-103735-9	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	20	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 103735-6	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	7	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 6-103735-4	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	15	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 103735-4	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass		Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 103735-5	2.54 m	100 in	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	6	Solder	Keying Slot	1	Thermoplastic	Header	30 in	0.76 m	UL94 V-0	Tin-Lead	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in
TE Connectivity AMP Connectors 5-103735-7	2.54 µm	100 µin	0.545 in	13.84 mm	Square	All	Male Pin	Shrouded - 4 Wall	0.13 in	3.3 mm	Brass	8	Solder	Keying Slot	1	Thermoplastic	Header	30 Áin	0.76 Ám	UL94 V-0	Tin	Automotive, General Purpose, Medical, Telecommunications	0.1 in	2.54 mm	Through Hole	Black	Latch Holder	3 A	Board to Board, Cable	Gold	-65 ░C	105 ░C	0.23 in	5.84 mm	13.6 mm	0.535 in

Description

General part information

103735 Series

Connector Header Through Hole 11 position 0.100" (2.54mm)
