Q-0L0720008024i

Active

Amphenol Custom Cable

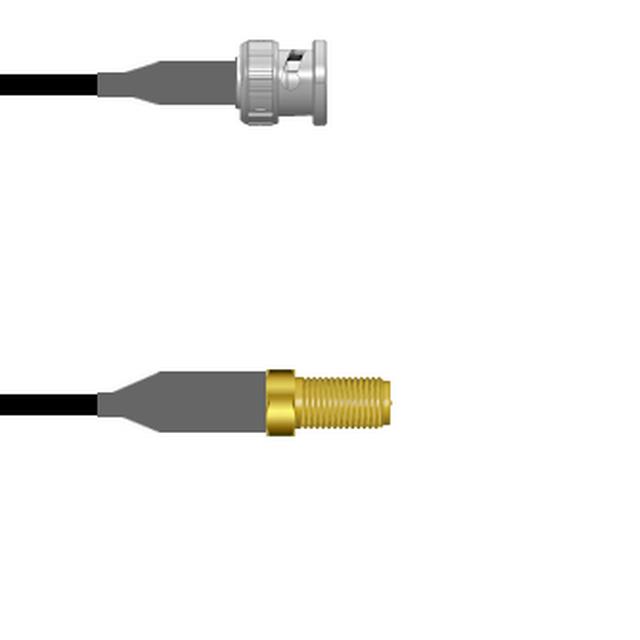

CBL ASSY RPSMA-BNC JACK-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L0720008024i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC JACK-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L0720008024i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0L0720 Series

Part	Style	2nd Contact Gender	Cable Type	Frequency - Max [Max]	Overall Impedance	Length	Length	Features	2nd Connector Mounting Type	Color	2nd Connector	1st Contact Gender	1st Connector	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-0L0720008.75M	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	29.53 "	750 mm	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)
Amphenol Custom Cable Q-0L07200082.5M	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	98.4 in	2.5 m	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0L0720008060i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	5 '	1.5 m	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0L0720008072i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	72 in	1.8 m	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0L0720008001M	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	39.4 in	1 m	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-0L07200081.5M	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	59.1 in	1.5 m	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0L0720008006i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	6 in	152.4 mm	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)
Amphenol Custom Cable Q-0L0720008024i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	24 "	609.6 mm	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)
Amphenol Custom Cable Q-0L0720008036i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	36 in	91.44 cm	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)
Amphenol Custom Cable Q-0L0720008009i	RP-SMA to BNC	Male	RG-58	4 GHz	50 Ohms	9 "	228.6 mm	Shielded	Free Hanging (In-Line)	Black	BNC Plug	Male	RP-SMA Jack	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 60.61
		25	$ 59.42
		50	$ 58.24
		100	$ 57.05
		250	$ 55.87

Description

General part information

Q-0L0720 Series

Cable Assembly Coaxial RP-SMA to BNC RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
