XSG.00.250.NTN

Active

LEMO

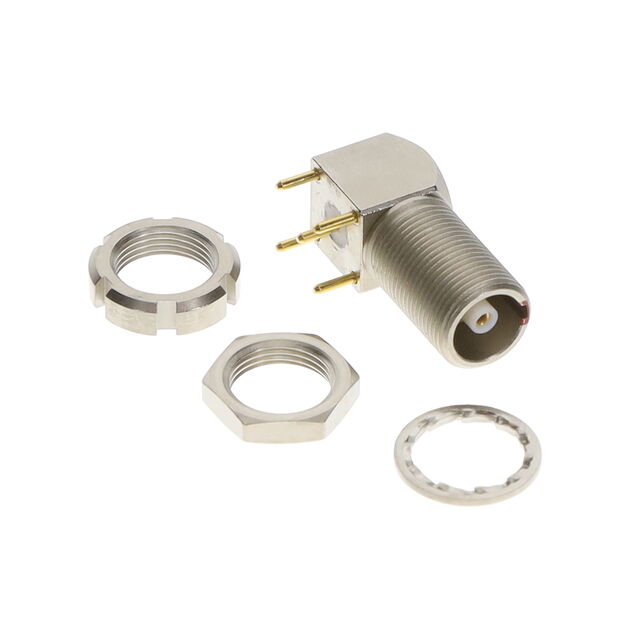

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XSG.00.250.NTN	XSG.00.250 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Lockwasher, 2 Nuts, 1 Connector	1 Lockwasher, 2 Nuts, 1 Connector
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

Circular Push Pull Connectors BEND RELIEF

Part	Mounting Type	Ingress Protection	Shield Termination	Mating Cycles	Body Material	Connector Style	Dielectric Material	Impedance	Mounting Feature	Center Contact Plating	Voltage Rating	Connector Type	Contact Termination	Includes	Center Contact Material	Housing Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Number of Ports
LEMO XSG.00.250.NTNZ	Panel Mount, Right Angle, Through Hole	IP50	Solder	5000	Brass	NIM-CAMAC CD/N 549	Polytetrafluoroethylene (PTFE)	50 Ohms	Bulkhead - Front Side Nut	Gold	700 VDC	Female Socket, Receptacle	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Bronze	Silver	Push-Pull	-55 °C	260 ░C	Nickel
LEMO XSG.00.250.NTN	Panel Mount, Right Angle, Through Hole	IP50	Solder	5000	Brass	NIM-CAMAC CD/N 549	Polytetrafluoroethylene (PTFE)	50 Ohms	Bulkhead - Front Side Nut	Gold	700 VDC	Female Socket, Receptacle	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Bronze	Silver	Push-Pull	-55 °C	260 ░C	Nickel	1
