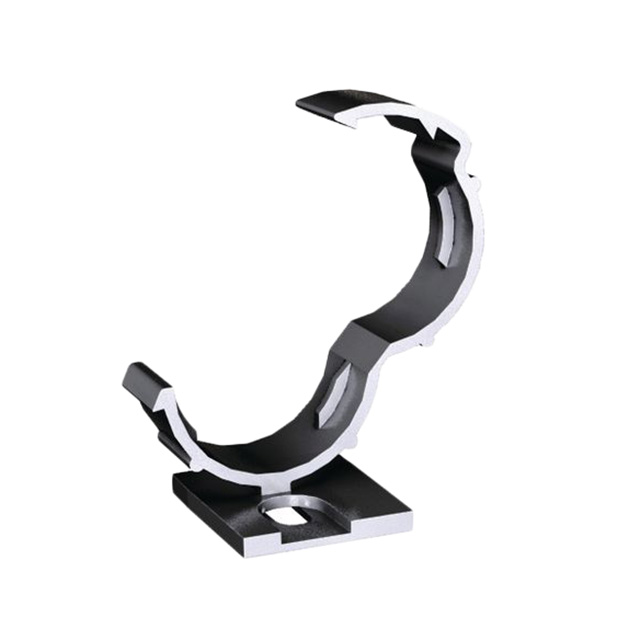

Specification	SHR-C2

Color	Black
Height	1.28 in
Length	1.18 in
Material	Nylon 6, 6, Polyamide (PA66)
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size (Max)	0.984 in
Opening Size (Min)	0.787 in
Screw Diameter (Metric)	4 mm
Screw Size	#8
Type	Clip, C-Type
Type Attributes	Hinged, Locking
Width	1 in

SHR-C Series

Part	Screw Size	Screw Diameter (Metric)	Length	Color	Mounting Type	Material	Width	Height	Material Flammability Rating	Opening Size (Min)	Opening Size (Max)	Type	Type Attributes	Adhesive	Panel Thickness (Max)	Panel Thickness (Min)	Panel Hole Shape	Panel Hole Size
Essentra Components SHR-C2	#8	4 mm	1.18 in	Black	Fastener	6 Nylon 6 Polyamide (PA66)	1 in	1.28 in	UL94 V-2	0.787 in	0.984 in	C-Type Clip	Hinged Locking
Essentra Components SHR-C3	#8	4 mm	1.18 in	Black	Adhesive Fastener	6 Nylon 6 Polyamide (PA66)	1 in	1.28 in	UL94 V-2	0.787 in	0.984 in	C-Type Clip	Hinged Locking	Rubber Based (RMS-375)
Essentra Components SHR-C4			1.18 in	Black	Arrowhead	6 Nylon 6 Polyamide (PA66)	0.49 in		UL94 V-2	0.787 in	0.984 in	C-Type Clip	Hinged Locking		0.079 in	0.031 in	Square	0.374 in
Essentra Components SHR-C1			1.14 in	Black	Arrowhead Winged	6 Nylon 6 Polyamide (PA66)	0.49 in	1.41 in	UL94 V-2	0.787 in	0.984 in	C-Type Clip	Hinged Locking		0.079 in	0.031 in		0.252 in
