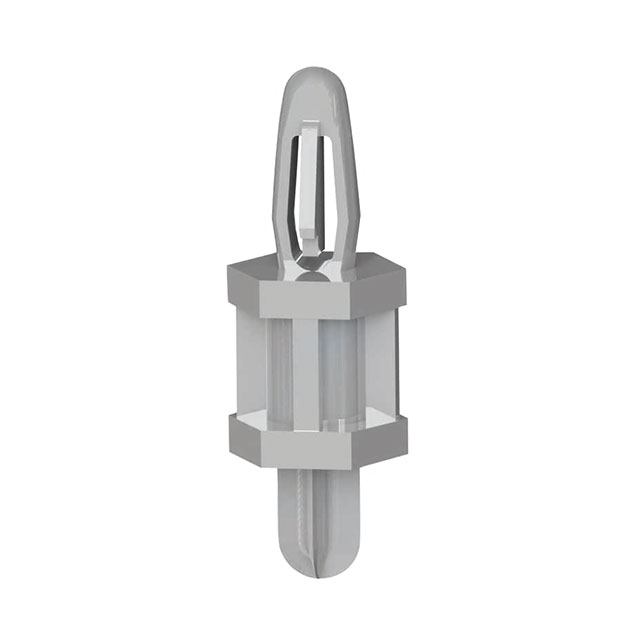

Specification	SCBSST-16-01

Between Board Height	1 in
Features	M4 Thread
Holding Type	Snap Lock
Length - Overall	1.653 in
Material	Nylon
Mounting Panel Thickness	0.063 in
Mounting Type	Threaded Stud
Support Hole Diameter	0.157 in
Support Panel Thickness	0.062 in
Support Panel Thickness (Fraction)	1/16"

SCBSST Series

Part	Length - Overall	Features	Mounting Panel Thickness	Holding Type	Mounting Type	Support Hole Diameter	Between Board Height	Support Panel Thickness	Support Panel Thickness (Fraction)	Material
Essentra Components SCBSST-10-01	1.28 in	M4 Thread	0.063 in	Snap Lock	Threaded Stud	0.157 in	0.625 in	0.062 in	1/16"	Nylon
Essentra Components SCBSST-8-01	1.154 in	M4 Thread	0.063 in	Snap Lock	Threaded Stud	0.157 in	0.5 in	0.062 in	1/16"	Nylon
Essentra Components SCBSST-4-01	0.906 in	M4 Thread	0.063 in	Snap Lock	Threaded Stud	0.157 in	0.25 in	0.062 in	1/16"	Nylon
Essentra Components SCBSST-16-01	1.653 in	M4 Thread	0.063 in	Snap Lock	Threaded Stud	0.157 in	1 in	0.062 in	1/16"	Nylon
