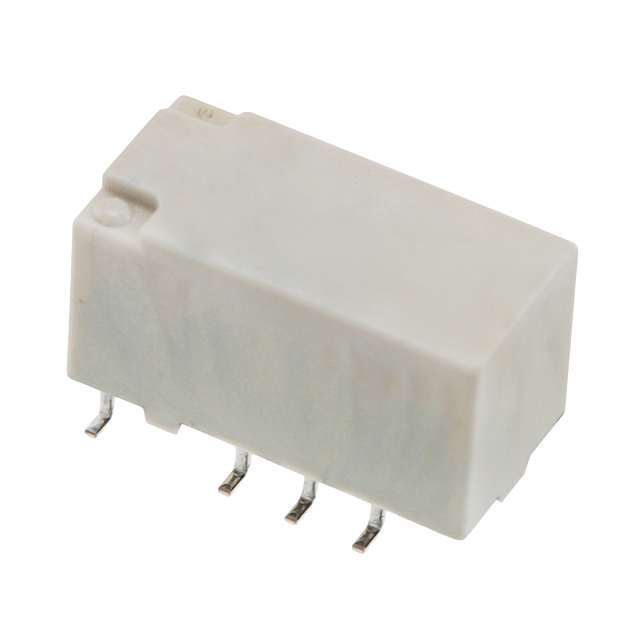

TX2SS-9V-X

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Relay Technical Info

TX2SS-9V-X

Active

Panasonic Electric Works

RELAY TELECOM DPDT 2A 9V

Deep-Dive with AI

DocumentsDatasheet Relay Technical Info

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TX2SS-9V-X

Approval Agency	BSI, cURus
Coil Current	15.5 mA
Coil Resistance	579 Ohms
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching [Max]	440 VA
Mounting Type	Surface Mount
Must Operate Voltage	6.75 VDC
Must Release Voltage	0.9 VDC
Operate Time	4 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	220 VDC
Termination Style	Gull Wing

TX2SS Series

...

Part	Contact Rating (Current)	Switching Voltage	Termination Style	Seal Rating	Coil Current	Approval Agency	Coil Resistance	Must Operate Voltage	Coil Type	Relay Type	Release Time	Contact Material	Contact Form	Mounting Type	Load - Max Switching	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Load - Max Switching [Max]
Panasonic Electric Works TX2SS-L-6V-TH	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	16.7 mA	BSI cURus	360 Ohms	4.5 VDC	Latching Single Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C
Panasonic Electric Works TX2SS-L2-3V-TH-W	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	23.3 mA	BSI cURus	128.6 Ohms	2.25 VDC	Latching Dual Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C
Panasonic Electric Works TX2SS-48V-TH-X	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully		BSI cURus	8.533 kOhms	36 VDC	Non Latching	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	70 °C	-40 °C	4.8 VDC	48 VDC
Panasonic Electric Works TX2SS-9V-X	2 A	220 VDC	Gull Wing	Sealed - Fully	15.5 mA	BSI cURus	579 Ohms	6.75 VDC	Non Latching	Telecom	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount		4 ms	85 °C	-40 °C	0.9 VDC	9 VDC	440 VA
Panasonic Electric Works TX2SS-LT-9V-TH	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	15.5 mA	BSI cURus	579 Ohms	6.75 VDC	Latching Dual Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C		9 VDC
Panasonic Electric Works TX2SS-L2-6V-Z	2 A	220 VDC	Gull Wing	Sealed - Fully	33.3 mA	BSI cURus	180 Ohms	4.5 VDC	Latching Dual Coil	Telecom	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount		4 ms	85 °C	-40 °C			440 VA
Panasonic Electric Works TX2SS-24V-TH-Y	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	5.8 mA	BSI cURus	4.114 kOhms	18 VDC	Non Latching	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C	2.4 VDC	24 VDC
Panasonic Electric Works TX2SS-L-1.5V-TH-X	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	66.7 mA	BSI cURus	22.5 Ohms	1.13 VDC	Latching Single Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C		1.5 VDC
Panasonic Electric Works TX2SS-LT-2.4V-TH-X	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	29.2 mA	BSI cURus	82.2 Ohms	1.8 VDC	Latching Dual Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C		2.4 VDC
Panasonic Electric Works TX2SS-L-5V-TH-Y	2 A	220 VDC 250 VAC	Gull Wing	Sealed - Fully	20 mA	BSI cURus	250 Ohms	3.75 VDC	Latching Single Coil	General Purpose	4 ms	Gold (Au) Silver (Ag)	DPDT (2 Form C)	Surface Mount	440 W 500 VA	4 ms	85 °C	-40 °C		5 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.44
