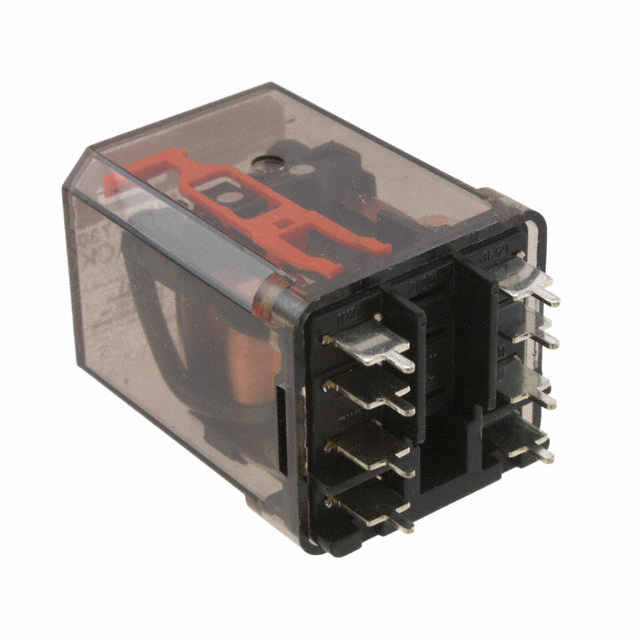

RM207730

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 16A 230V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 16A 230V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Features	Release Time	Contact Form	Load - Max Switching	Operate Time	Coil Voltage	Mounting Type	Contact Rating (Current)	Contact Material	Switching Voltage	Must Release Voltage	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Resistance	Relay Type	Coil Type	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays RM207730	27.7 mA	Mechanical Indicator	10 ms	DPDT (2 Form C)	7040 VA	15 ms	230 VAC	Through Hole	16 A	Silver Cadmium Oxide (AgCdO)	440 VAC	69 VAC	cURus VDE	60 °C	-45 °C	PC Pin	8.3 kOhms	General Purpose	Non Latching	184 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil Through Hole
