AP63356DV-EVM

Active

Diodes Inc

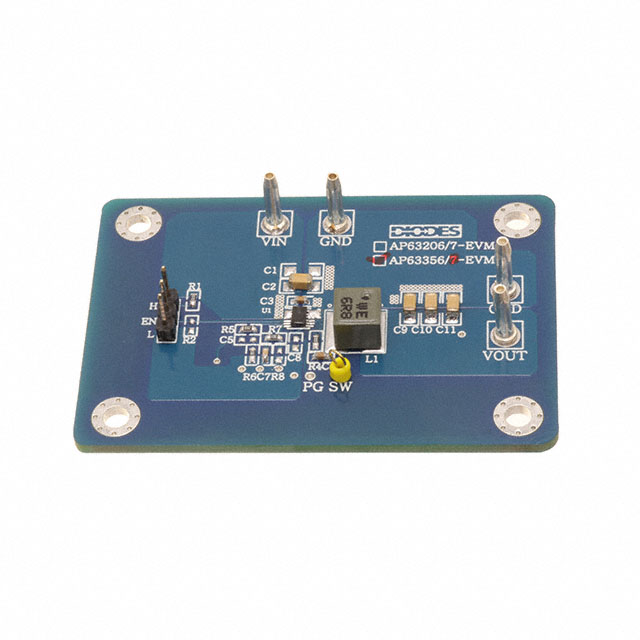

EVAL BOARD FOR AP63356

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP63356DV-EVM

Active

Diodes Inc

EVAL BOARD FOR AP63356

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP63356DV-EVM

Board Type	Fully Populated
Current - Output	3.5 A
Frequency - Switching	450 kHz
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	AP63356
Voltage - Input [Max]	32 V
Voltage - Input [Min]	3.8 V
Voltage - Output	12 V

AP63356 Series

3.8V-32V INPUT, 3.5A Low Iq Synchronous Buck with Enhanced EMI Reduction PWM Only

Part	Outputs and Type	Outputs and Type	Voltage - Output	Utilized IC / Part	Main Purpose	Board Type	Frequency - Switching	Current - Output	Regulator Topology	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]
Diodes Inc AP63356DV-EVM	Non-Isolated	1	12 V	AP63356	DC/DC Step Down	Fully Populated	450 kHz	3.5 A	Buck	Board(s)	32 V	3.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.25

Description

General part information

AP63356 Series

The AP63356/AP63357 is a 3.5A, synchronous buck converter with a wide input voltage range of 3.8V to 32V. The device fully integrates a 74mΩ high-side power MOSFET and a 40mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.
