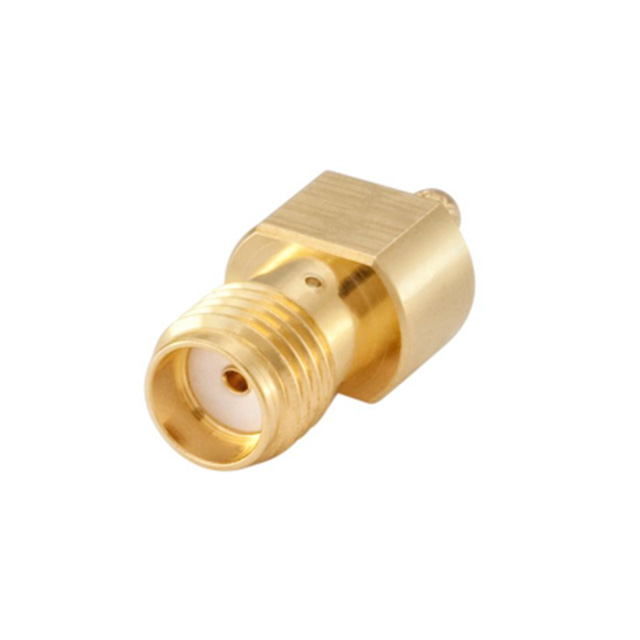

32K107-302L5

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K107-302L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	480 V

Part	Housing Color	Contact Termination	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Connector Style	Mounting Type	Body Material	Cable Group	Center Contact Plating	Shield Termination	Center Contact Material	Number of Ports	Impedance	Body Finish	Connector Type	Voltage Rating
Rosenberger 32K107-307L5	Gold	Solder	Polytetrafluoroethylene (PTFE)	12.4 GHz	155 °C	-55 °C	500	SMA	Free Hanging (In-Line)	Beryllium Copper	RG-142B	Gold	Crimp	Beryllium Copper	1	50 Ohms	Gold	Female Socket Jack	480 V
Rosenberger 32K107-302L5	Gold	Solder	Polytetrafluoroethylene (PTFE)	12.4 GHz	155 °C	-55 °C	500	SMA	Free Hanging (In-Line)	Beryllium Copper	188A 316 RG-174A	Gold	Crimp	Beryllium Copper	1	50 Ohms	Gold	Female Socket Jack	480 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
