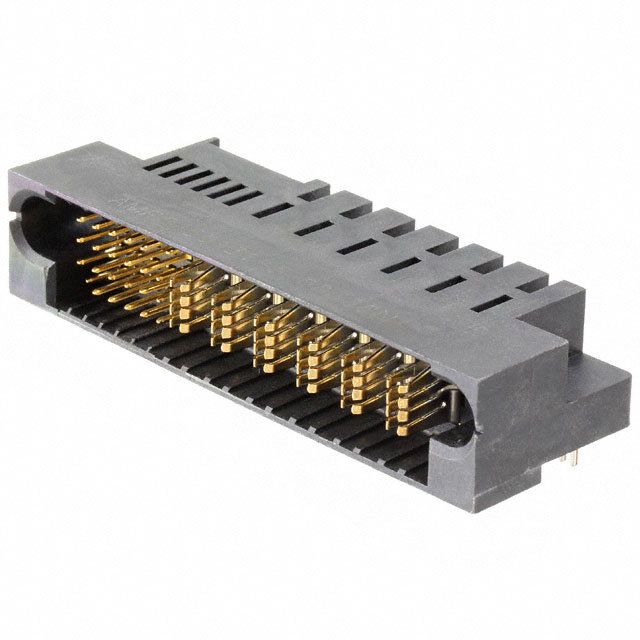

Specification	6450131-5

Connector Style	Multi-Beam
Connector Type	Blades, Male Pins, Header
Features	Mating Guide, Board Lock
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	4
Pitch	0.1 in
Power Contacts (Typical)	6
Signal Contacts (Typical)	24
Termination	Solder

6450131 Series

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Finish	Connector Style	Mounting Type	Connector Type	Number of Positions Loaded	Power Contacts (Typical)	Signal Contacts (Typical)	Pitch	Number of Rows	Contact Finish Thickness	Features	Termination
TE Connectivity AMP Connectors 6450131-7	UL94 V-0	-20 °C	105 °C	30	Gold	Multi-Beam	Board Edge Right Angle Through Hole	Blades Header Male Pins	All	6	24	0.1 in	4	30 µin	Board Lock Mating Guide	Solder
TE Connectivity AMP Connectors 6450131-5				30		Multi-Beam	Board Edge Right Angle Through Hole	Blades Header Male Pins	All	6	24	0.1 in	4		Board Lock Mating Guide	Solder
TE Connectivity AMP Connectors 6450131-3	UL94 V-0			21		Multi-Beam	Board Edge Right Angle Through Hole	Blades Header Male Pins		5	16				Board Lock Mating Guide	Solder
