82-150-38

Active

Grayhill Inc.

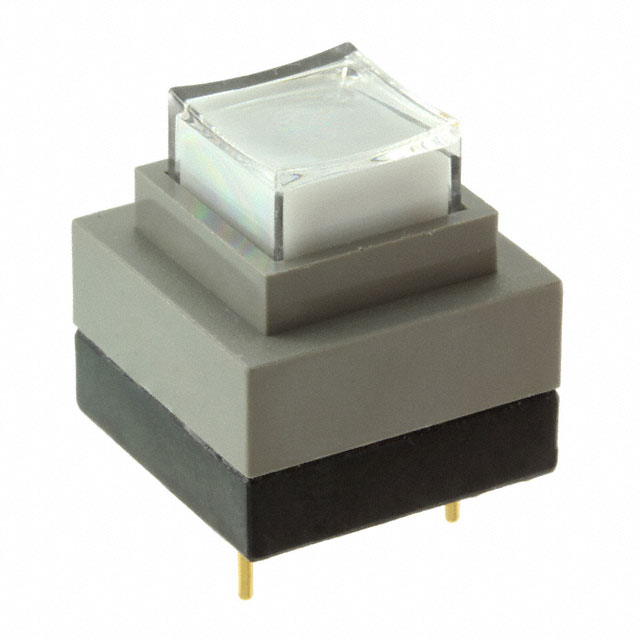

PAD SWITCH,SPST,NUMBER OF POSITIONS:1,PC TAIL TERMINAL

Search across all available documentation for this part.

Active

Grayhill Inc.

PAD SWITCH,SPST,NUMBER OF POSITIONS:1,PC TAIL TERMINAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 1 Transparent Key Cap Keys Keyswitch Contacts Independent Switches (SPST) Output Illuminated - Light Source Not Included 0.1A @ 5VDC

Technical documentation and resources

Specification	82-150-38	82-150 Series

Contact Rating @ Voltage	5 VDC, 0.1 A	0.1 - 5 VDC
Illumination	Illuminated - Light Source Not Included	Illuminated - Light Source Not Included
Key Color	Gray	Gray, Black
Key Type	Transparent Key Cap	Transparent Key Cap, Polymer
Legend	Customizable (Sold Separate)	Customizable (Sold Separate), No Legend
Legend Type	Interchangeable	Interchangeable, Fixed
Matrix (Columns x Rows) [custom]	1	1
Matrix (Columns x Rows) [custom]	1	1
Mounting Type	Through Hole	Through Hole
Number of Keys	1	1
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Operational Life	1000000 Cycles	1000000 Cycles
Output Type	Independent Switches (SPST)	Independent Switches (DPST), Independent Switches (SPST)
Switch Type	Keyswitch	Keyswitch
Termination Style	PC Pin	PC Pin

Part	Mounting Type	Legend Type	Key Color	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Operational Life	Key Type	Switch Type	Number of Keys	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Legend	Contact Rating @ Voltage	Termination Style
Grayhill Inc. 82-150-16	Through Hole	Interchangeable	Gray	1	1	1000000 Cycles	Transparent Key Cap	Keyswitch	1	Illuminated - Light Source Not Included	-40 °C	80 C	Independent Switches (DPST)	Customizable (Sold Separate)	0.1 A, 5 VDC	PC Pin
Grayhill Inc. 82-150-213	Through Hole	Interchangeable	Black	1	1	1000000 Cycles	Transparent Key Cap	Keyswitch	1	Illuminated - Light Source Not Included	-40 °C	80 C	Independent Switches (DPST)	Customizable (Sold Separate)	0.1 A, 5 VDC	PC Pin
Grayhill Inc. 82-150-38	Through Hole	Interchangeable	Gray	1	1	1000000 Cycles	Transparent Key Cap	Keyswitch	1	Illuminated - Light Source Not Included	-40 °C	80 C	Independent Switches (SPST)	Customizable (Sold Separate)	0.1 A, 5 VDC	PC Pin
Grayhill Inc. 82-150-15	Through Hole	Fixed	Gray	1	1	1000000 Cycles	Polymer	Keyswitch	1	Illuminated - Light Source Not Included	-40 °C	80 C	Independent Switches (DPST)	No Legend	0.1 A, 5 VDC	PC Pin
Grayhill Inc. 82-150-211	Through Hole	Interchangeable	Black	1	1	1000000 Cycles	Transparent Key Cap	Keyswitch	1	Illuminated - Light Source Not Included	-40 °C	80 C	Independent Switches (SPST)	Customizable (Sold Separate)	0.1 A, 5 VDC	PC Pin
