776087-2
ActiveTE Connectivity AMP Connectors

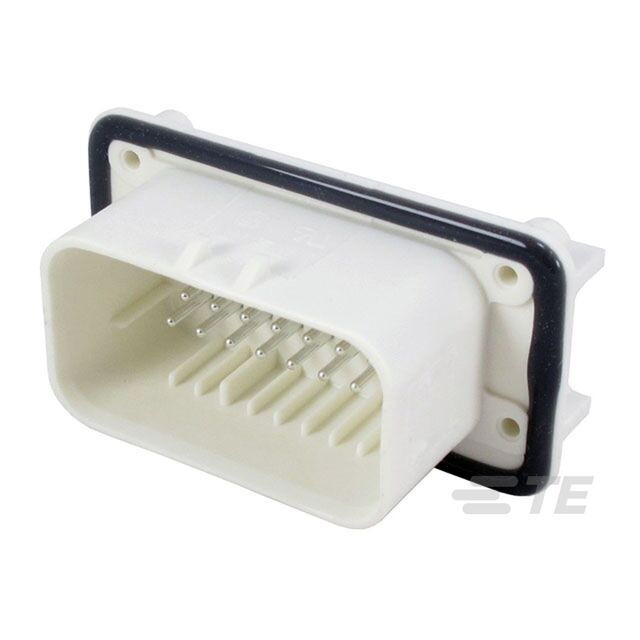

CONN HEADER R/A 23POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776087-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 23POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776087-2 | 776087 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Board Guide, Sealed | Board Guide, Sealed |
| Insulation Color | Natural | Black, Natural, Blue, Gray |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 23 | 23 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776087 Series
CONN HEADER R/A 23POS 4MM
| Part | Contact Material | Shrouding | Applications | Number of Rows | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Insulation Color | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Style | Voltage Rating | Contact Shape | Connector Type | Number of Positions | Features | Contact Type | Termination | Mounting Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776087-1 | Brass | Shrouded - 4 Wall | Automotive, Industrial | 3 | All | 0.157 in | 4 mm | Locking Ramp | Black | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Board to Cable/Wire | 250 VAC | Circular | Header | 23 | Board Guide, Sealed | Male Pin | Solder | Panel Mount, Right Angle, Through Hole | Varies by Wire Gauge | 0.157 " | 4 mm | |
TE Connectivity AMP Connectors 776087-2 | Brass | Shrouded - 4 Wall | Automotive, Industrial | 3 | All | 0.157 in | 4 mm | Locking Ramp | Natural | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Board to Cable/Wire | 250 VAC | Circular | Header | 23 | Board Guide, Sealed | Male Pin | Solder | Panel Mount, Right Angle, Through Hole | Varies by Wire Gauge | 0.157 " | 4 mm | |
TE Connectivity AMP Connectors 776087-5 | Brass | Shrouded - 4 Wall | Automotive, Industrial | 3 | All | 0.157 in | 4 mm | Locking Ramp | Blue | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 105 ░C | Board to Cable/Wire | 250 VAC | Circular | Header | 23 | Board Guide, Sealed | Male Pin | Solder | Panel Mount, Right Angle, Through Hole | Varies by Wire Gauge | 0.157 " | 4 mm | |
TE Connectivity AMP Connectors 1-776087-4 | Brass | Shrouded - 4 Wall | Automotive, Industrial | 3 | All | 0.157 in | 4 mm | Locking Ramp | Gray | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 125 °C | Board to Cable/Wire | 250 VAC | Circular | Header | 23 | Board Guide, Sealed | Male Pin | Solder | Panel Mount, Right Angle, Through Hole | Varies by Wire Gauge | 0.157 " | 4 mm | Gold-Palladium |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.49 | |
| 10 | $ 11.18 | |||
| 25 | $ 10.37 | |||
| 40 | $ 9.98 | |||
| 80 | $ 9.44 | |||
| 230 | $ 9.20 | |||
Description
General part information
776087 Series
Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
