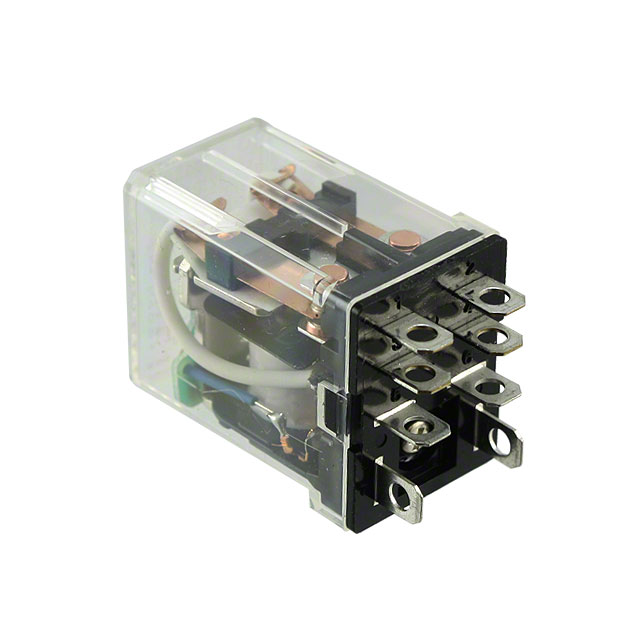

AHK22124
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
AHK22124
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPDT 10A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHK22124 |
|---|---|
| Approval Agency | cURus, TUV |
| Coil Current | 37 mA |
| Coil Resistance | 650 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Load - Max Switching | 2500 VA, 1250 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -50 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC, 125 VDC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AHK221 Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
