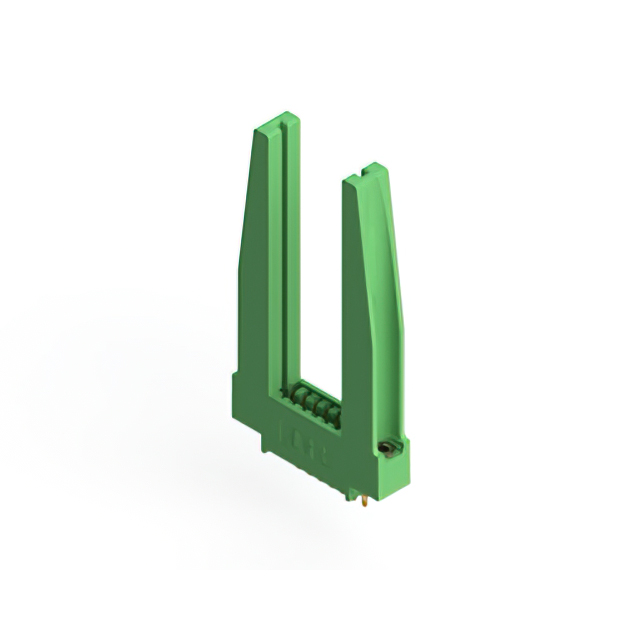

346-007-522-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Enhanced Product Overview EN +1

346-007-522-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-007-522-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder
Termination Rows	1

346-007 Series

Part	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch [x]	Pitch [x]	Contact Finish	Card Type	Termination Rows	Read Out	Gender	Number of Positions	Number of Rows	Flange Feature	Flange Feature	Flange Feature	Contact Type	Contact Material	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 346-007-521-612	Polyester Thermoplastic	-40 °C	105 ░C	Solder	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-007-522-102	Polyester Thermoplastic	-40 °C	105 ░C	Solder	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Flush Mount Top Opening Unthreaded			Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "
EDAC Inc. 346-007-541-102	Polyester Thermoplastic	-40 °C	105 ░C	Wire Wrap	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Flush Mount Top Opening Unthreaded			Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "
EDAC Inc. 346-007-522-112	Polyester Thermoplastic	-40 °C	105 ░C	Solder	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Flush Mount Side Opening Unthreaded			Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "
EDAC Inc. 346-007-521-104	Polyester Thermoplastic	-40 °C	105 ░C	Solder	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Flush Mount Top Opening Unthreaded			Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	0.156 in
EDAC Inc. 346-007-521-101	Polyester Thermoplastic	-40 °C	105 ░C	Solder	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1				Cantilever	Copper Alloy	Through Hole	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-007-559-608	Polyester Thermoplastic	-40 °C	105 ░C	Solder Wire Wrap	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	4-40 Threaded Insert Top Mount Opening			Cantilever	Copper Alloy	Through Hole Right Angle	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-007-558-602	Polyester Thermoplastic	-40 °C	105 ░C	Solder Wire Wrap	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1		3.25 mm	0.128 in	Cantilever	Copper Alloy	Through Hole Right Angle	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-007-559-612	Polyester Thermoplastic	-40 °C	105 ░C	Solder Wire Wrap	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Cantilever	Copper Alloy	Through Hole Right Angle	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 346-007-559-112	Polyester Thermoplastic	-40 °C	105 ░C	Solder Wire Wrap	0.125 in	3.18 mm	Gold	Non Specified - Single Edge	1	Single	Female	7	1	Flush Mount Side Opening Unthreaded			Cantilever	Copper Alloy	Through Hole Right Angle	7	10 Áin	0.25 Ám	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 5.36
Newark	Each	25	$ 6.97
		50	$ 6.81
		100	$ 6.48
		250	$ 6.32
		500	$ 6.10

Description

General part information

346-007 Series

7 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Drawing EN

Datasheet

Enhanced Product Overview EN

Datasheet
