010632WF068
ActiveEssentra Components

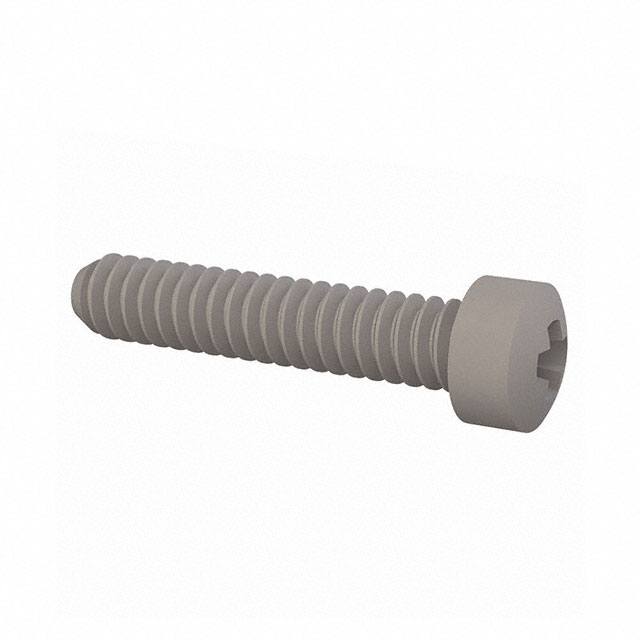

FILLISTER PHILLIPS SCREW 6-32
Deep-Dive with AI
Search across all available documentation for this part.
010632WF068
ActiveEssentra Components
FILLISTER PHILLIPS SCREW 6-32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 010632WF068 | 010632WF Series |
|---|---|---|
| Drive Type | Phillips | Phillips |
| Head Diameter [diameter] | 5.51 mm | 5.51 mm |
| Head Diameter [diameter] | 0.217 " | 0.217 " |
| Head Height | 0.243 in | 0.243 in |
| Head Height | 6.17 mm | 6.17 mm |
| Length - Below Head | 17.46 mm | 0.875 - 25.4 mm |
| Length - Below Head | - | 0.25 - 1 in |
| Length - Below Head | - | 0.25 - 22.23 in |
| Length - Below Head | - | 0.438 in |
| Length - Below Head | - | 11.11 mm |
| Length - Below Head | - | 4.76 - 50.8 mm |
| Length - Below Head | - | 1/2 |
| Length - Below Head [x] | 0.688 " | 0.188 - 2 in |
| Length - Overall | - | 0.399 - 1.243 in |
| Length - Overall | - | 10.14 - 31.57 mm |
| Material | Nylon | Nylon |
| Screw Head Type | Pan Head | Pan Head |
| Thread Size | #6-32 | #6-32 |
| Type | Machine Screw | Machine Screw |
010632WF Series
FILLISTER PHILLIPS SCREW 6-32 TH
| Part | Length - Below Head | Length - Below Head | Length - Below Head | Type | Head Height | Head Height | Screw Head Type | Material | Head Diameter [diameter] | Head Diameter [diameter] | Thread Size | Length - Overall [x] | Length - Overall [x] | Drive Type | Length - Below Head [custom] | Length - Below Head [custom] | Length - Below Head [x] | Length - Below Head [x] | Length - Below Head |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Components 010632WF025 | 6.35 mm | 0.25 in | 0.25 in | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 0.493 in | 12.52 mm | Phillips | |||||
Essentra Components 010632WF043 | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 0.681 in | 17.29 mm | Phillips | 0.438 in | 11.11 mm | ||||||
Essentra Components 010632WF187 | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | Phillips | 1.875 in | 47.63 mm | ||||||||
Essentra Components 010632WF018 | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | Phillips | 0.188 in | 4.76 mm | ||||||||
Essentra Components 010632WF062 | 15.88 mm | 0.625 in | 0.625 in | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 0.868 in | 22.05 mm | Phillips | |||||
Essentra Components 010632WF200 | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | Phillips | 2 in | 50.8 mm | ||||||||
Essentra Components 010632WF050 | 12.7 mm | 0.5 in | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 0.743 in | 18.87 mm | Phillips | 1/2 | |||||
Essentra Components 010632WF015 | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 0.399 in | 10.14 mm | Phillips | ||||||||
Essentra Components 010632WF100 | 25.4 mm | 1 in | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | 1.243 in | 31.57 mm | Phillips | ||||||
Essentra Components 010632WF068 | 17.46 mm | Machine Screw | 0.243 in | 6.17 mm | Pan Head | Nylon | 5.51 mm | 0.217 " | #6-32 | Phillips | 0.688 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.07 | |
Description
General part information
010632WF Series
#6-32 Pan Head Machine Screw Phillips Drive Nylon
Documents
Technical documentation and resources
No documents available
