010632WF100

Active

Essentra Components

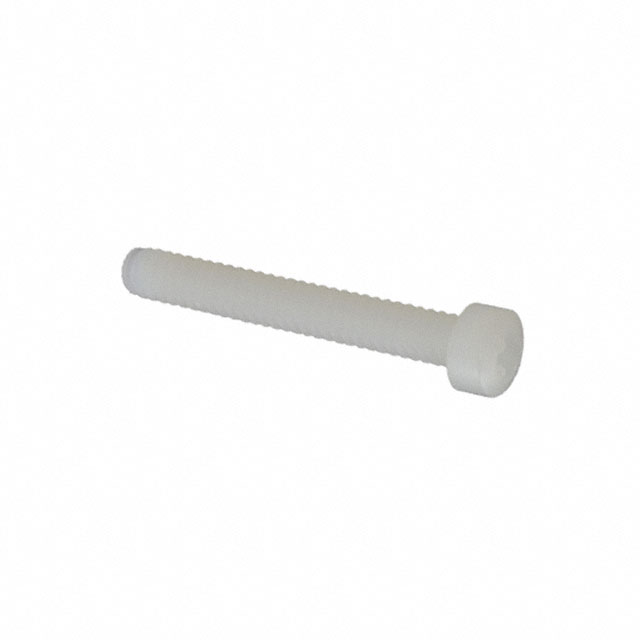

FILLISTER PHILLIPS SCREW 6-32 TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

010632WF100

Active

Essentra Components

FILLISTER PHILLIPS SCREW 6-32 TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.12
		5	$ 0.10
		10	$ 0.09
		25	$ 0.08
		50	$ 0.07
		100	$ 0.07
		250	$ 0.06
		500	$ 0.06
		1000	$ 0.05

Description

General part information

010632WF Series

#6-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	010632WF100	010632WF Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	5.51 mm	5.51 mm
Head Diameter [diameter]	0.217 "	0.217 "
Head Height	0.243 in	0.243 in
Head Height	6.17 mm	6.17 mm
Length - Below Head	25.4 mm	0.875 - 25.4 mm
Length - Below Head	1 in	0.25 - 1 in
Length - Below Head	-	0.25 - 22.23 in
Length - Below Head	-	0.438 in
Length - Below Head	-	11.11 mm
Length - Below Head	-	0.188 - 2 in
Length - Below Head	-	4.76 - 50.8 mm
Length - Below Head	-	1/2
Length - Overall [x]	1.243 in	0.399 - 1.243 in
Length - Overall [x]	31.57 mm	10.14 - 31.57 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#6-32	#6-32
Type	Machine Screw	Machine Screw

010632WF Series

FILLISTER PHILLIPS SCREW 6-32 TH

Part	Length - Below Head	Length - Below Head	Length - Below Head	Type	Head Height	Head Height	Screw Head Type	Material	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Length - Overall [x]	Length - Overall [x]	Drive Type	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
Essentra Components 010632WF025	6.35 mm	0.25 in	0.25 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.493 in	12.52 mm	Phillips
Essentra Components 010632WF043				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.681 in	17.29 mm	Phillips	0.438 in	11.11 mm
Essentra Components 010632WF187				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			1.875 in	47.63 mm
Essentra Components 010632WF018				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			0.188 in	4.76 mm
Essentra Components 010632WF062	15.88 mm	0.625 in	0.625 in	Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.868 in	22.05 mm	Phillips
Essentra Components 010632WF200				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			2 in	50.8 mm
Essentra Components 010632WF050	12.7 mm	0.5 in		Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.743 in	18.87 mm	Phillips					1/2
Essentra Components 010632WF015				Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	0.399 in	10.14 mm	Phillips
Essentra Components 010632WF100	25.4 mm	1 in		Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32	1.243 in	31.57 mm	Phillips
Essentra Components 010632WF068	17.46 mm			Machine Screw	0.243 in	6.17 mm	Pan Head	Nylon	5.51 mm	0.217 "	#6-32			Phillips			0.688 "
