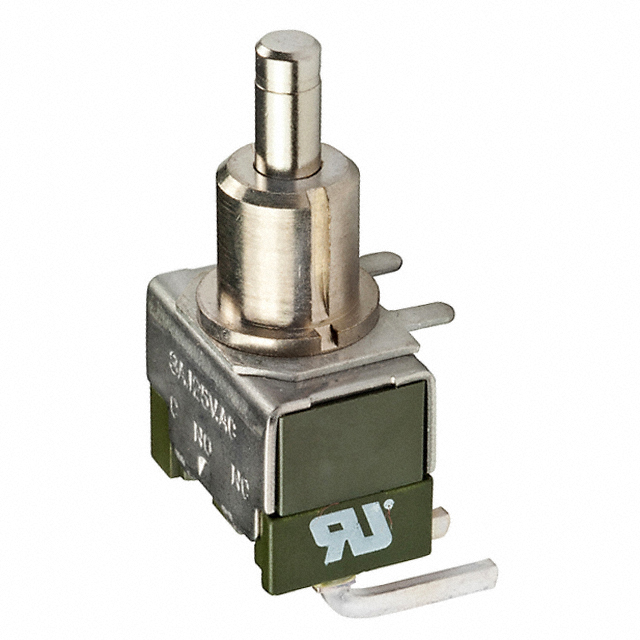

Specification	MB2411A2W30

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating	3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V

MB2411A Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Actuator Marking	Termination Style	Mounting Type	Switch Function	Circuit	Current Rating	Actuator Type	Features	Type	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Color - Actuator/Cap
NKK Switches MB2411A2W30/U	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Right Angle Through Hole	On-Mom	SPDT	3 A	Plunger for Cap	Epoxy Sealed Terminals	Standard
NKK Switches MB2411A2G40	200000 Cycles	100000 Cycles	85 °C	-30 °C	28 V	No Marking	PC Pin	Right Angle Through Hole Vertical	On-Mom	SPDT	0.4 VA	Plunger for Cap	Epoxy Sealed Terminals	Standard	28 V
NKK Switches MB2411A1W40	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Panel Mount Rear Right Angle Vertical	On-Mom	SPDT	3 A	Plunger for Cap	Epoxy Sealed Terminals	Standard		6.5 mm	Circular
NKK Switches MB2411A2G13-FB	200000 Cycles	100000 Cycles	85 °C	-30 °C	28 V	No Marking	PC Pin	Through Hole	On-Mom	SPDT	0.4 VA	Button Round	Epoxy Sealed Terminals	Standard	28 V			White
NKK Switches MB2411A2W30-HC	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Right Angle Through Hole	On-Mom	SPDT	3 A	Button Round	Epoxy Sealed Terminals	Standard				Red
NKK Switches MB2411A1G30-HA	200000 Cycles	100000 Cycles	85 °C	-30 °C	28 V	No Marking	PC Pin	Panel Mount Rear Right Angle	On-Mom	SPDT	0.4 VA	Button Round	Epoxy Sealed Terminals	Standard	28 V	6.5 mm	Circular	Black
NKK Switches MB2411A2W13-HA	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Through Hole	On-Mom	SPDT	3 A	Button Round	Epoxy Sealed Terminals	Standard				Black
NKK Switches MB2411A2W30-FA	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Right Angle Through Hole	On-Mom	SPDT	3 A	Button Round	Epoxy Sealed Terminals	Standard				Black
NKK Switches MB2411A2W26	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Through Hole	On-Mom	SPDT	3 A	Plunger for Cap	Epoxy Sealed Terminals	Standard
NKK Switches MB2411A2A13	200000 Cycles	25000	85 °C	-30 °C	125 V	No Marking	PC Pin	Through Hole	On-Mom	SPDT	3 A	Plunger for Cap	Epoxy Sealed Terminals	Standard
