342-082-542-201
ActiveEDAC Inc.

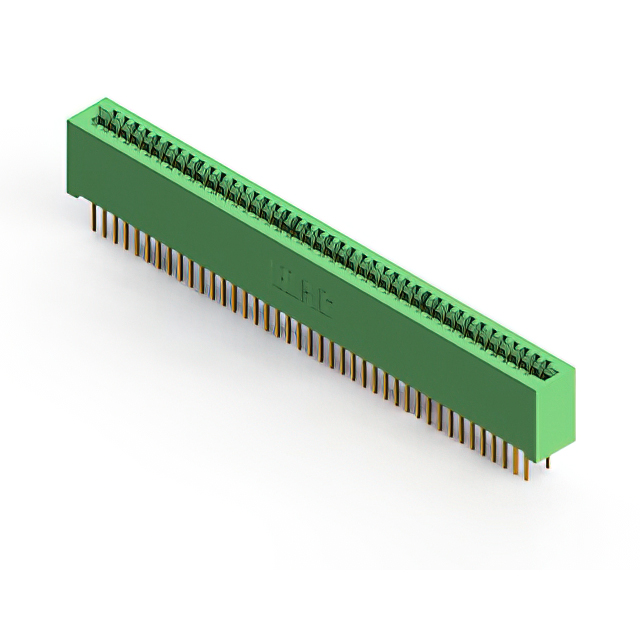

CARD EDGE CONNECTOR, 82 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
342-082-542-201
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 82 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-082-542-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
342-082 Series
| Part | Material - Insulation | Contact Material | Card Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Number of Positions | Termination Rows | Contact Finish | Gender | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Number of Rows | Read Out | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 82 | 2 | Gold | Female | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Board Edge Straddle Mount | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Eyelet(s) | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | ||||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole Right Angle | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder Wire Wrap | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Wire Wrap | |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder | ||||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 82 | 2 | Gold | Female | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
