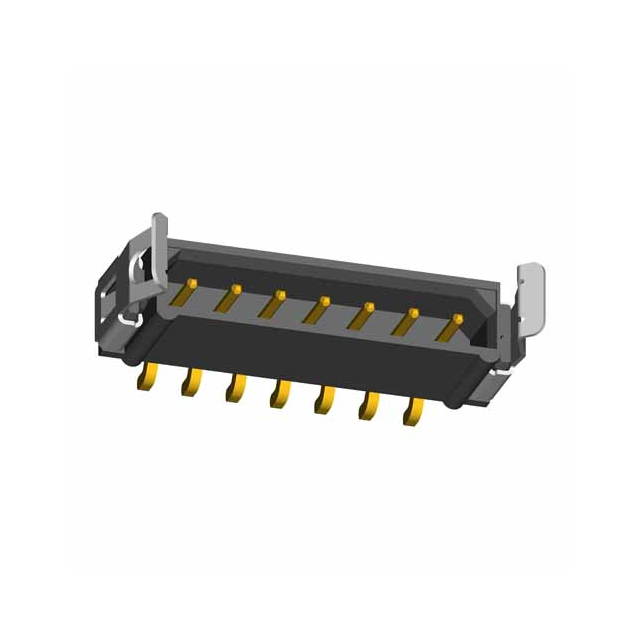

M80-8360422

Active

Harwin Inc.

4 POS. MALE SIL HORIZONTAL SMT CONN. LATCHES ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

Harwin Inc.

4 POS. MALE SIL HORIZONTAL SMT CONN. LATCHES ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8360422

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	0.3 µm
Contact Finish Thickness - Post	12 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Lock
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	0.205 in
Insulation Height	5.2 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.93 mm, 8.53 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

Part	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Voltage Rating	Mounting Type	Contact Type	Shrouding	Insulation Color	Features	Current Rating (Amps)	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Material	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Mated Stacking Heights	Insulation Height	Insulation Height
Harwin Inc. M80-8360222	Tin-Lead	Circular	29.5 Áin	0.75 Ám	Board to Board Cable	800 V	Surface Mount Right Angle	Male Pin	Shrouded - 4 Wall	Black	Strain Relief Clips	2.2 A	2	0.079 in	2 mm	Latch Lock	Solder	3 µm	118.1 µin	1	Polyphenylene Sulfide (PPS) Glass Filled	Brass	All	Gold	UL94 V-0	Header	-55 °C	125 °C	0.157 in	4 mm
Harwin Inc. M80-8360422	Tin-Lead	Circular	29.5 Áin	0.75 Ám	Board to Board Cable	800 VAC	Surface Mount	Male Pin	Shrouded - 4 Wall	Black	Strain Relief Clips	2.2 A	4	0.079 in	2 mm	Latch Lock	Solder	0.3 µm	12 µin	1	Polyphenylene Sulfide (PPS) Glass Filled	Brass	All	Gold	UL94 V-0	Header	-55 °C	125 °C			7.93 mm 8.53 mm	0.205 in	5.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 4 position 0.079" (2.00mm)
