ADC0809CCV/NOPB
ActiveTexas Instruments
8-BIT, 1-CH ΜP COMPATIBLE A/D CONVERTERS WITH 1.25 LSB INL
Deep-Dive with AI
Search across all available documentation for this part.
ADC0809CCV/NOPB
ActiveTexas Instruments
8-BIT, 1-CH ΜP COMPATIBLE A/D CONVERTERS WITH 1.25 LSB INL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADC0809CCV/NOPB | ADC0809 Series |
|---|---|---|
| Architecture | SAR | SAR |
| Configuration | MUX-S/H-ADC | MUX-S/H-ADC |
| Data Interface | Parallel | Parallel |
| Input Type | Single Ended | Single Ended |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 8 | 8 |
| Number of Inputs | 8 | 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

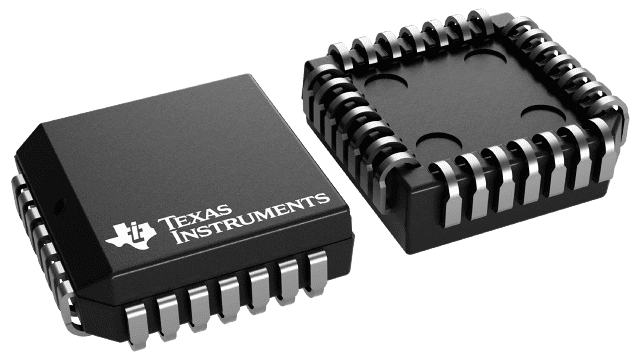

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead), 28-DIP |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | External | External |
| Sampling Rate (Per Second) | 10k | 10k |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51), 28-DIP |
| Voltage - Supply, Analog [Max] | 6.5 V | 6.5 V |
| Voltage - Supply, Analog [Min] | 4.5 V | 4.5 V |
| Voltage - Supply, Digital [Max] | 6.5 V | 6.5 V |
| Voltage - Supply, Digital [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
ADC0809 Series
8-bit, 1-Ch µP Compatible A/D Converters with 1.25 LSB INL
| Part | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Architecture | Number of A/D Converters | Input Type | Reference Type | Number of Inputs | Ratio - S/H:ADC | Supplier Device Package | Package / Case | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Sampling Rate (Per Second) | Configuration | Data Interface | Operating Temperature [Min] | Operating Temperature [Max] | Number of Bits | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-PLCC (11.51x11.51) | 28-LCC (J-Lead) | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Surface Mount | |
6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-DIP | 28-DIP | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Through Hole | |
Texas Instruments ADC0809CCV/NOPBThe ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16-channel multiplexer with common output (sample/hold port) see ADC0816 data sheet. (See AN-247 (Literature Number SNOA595) for more information.)
The ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16-channel multiplexer with common output (sample/hold port) see ADC0816 data sheet. (See AN-247 (Literature Number SNOA595) for more information.) | 6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-PLCC (11.51x11.51) | 28-LCC (J-Lead) | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Surface Mount |
6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-DIP | 28-DIP | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Through Hole | |
Texas Instruments ADC0809CCVX/NOPBThe ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16-channel multiplexer with common output (sample/hold port) see ADC0816 data sheet. (See AN-247 (Literature Number SNOA595) for more information.)
The ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16-channel multiplexer with common output (sample/hold port) see ADC0816 data sheet. (See AN-247 (Literature Number SNOA595) for more information.) | 6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-PLCC (11.51x11.51) | 28-LCC (J-Lead) | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Surface Mount |
6.5 V | 4.5 V | SAR | 1 | Single Ended | External | 8 | 1:1 | 28-PLCC (11.51x11.51) | 28-LCC (J-Lead) | 4.5 V | 6.5 V | 10k | MUX-S/H-ADC | Parallel | -40 °C | 85 °C | 8 | Surface Mount |
Description
General part information
ADC0809 Series
The ADC0808, ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808, ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808, ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For 16-channel multiplexer with common output (sample/hold port) see ADC0816 data sheet. (See AN-247 (Literature Number SNOA595) for more information.)
