2-1103113-3
ActiveTE Connectivity AMP Connectors

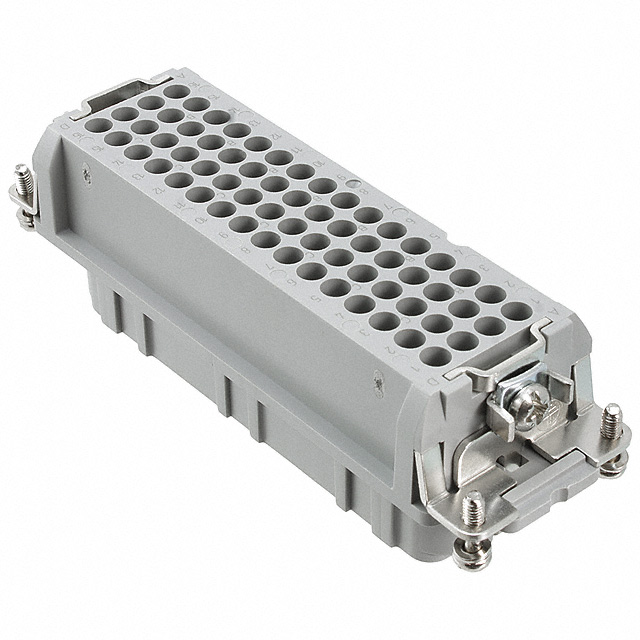

INSERT FEMALE 64POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103113-3
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 64POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103113-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 64+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 8 |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 28.52 | |
1103113 Series
INSERT FEMALE 64POS+1GND CRIMP
| Part | Gender | Material Flammability Rating | Connector Type | Contact Type | Size | Termination Style | Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103113-3 | Female | UL94 V-0 | Insert without Contacts | HTS HN.D | 8 | Crimp | Gray | 10 A | 125 °C | -40 °C | 64+Ground | 250 VDC |
Description
General part information
1103113 Series
Female Insert without Contacts Gray 64+Ground Position Crimp
