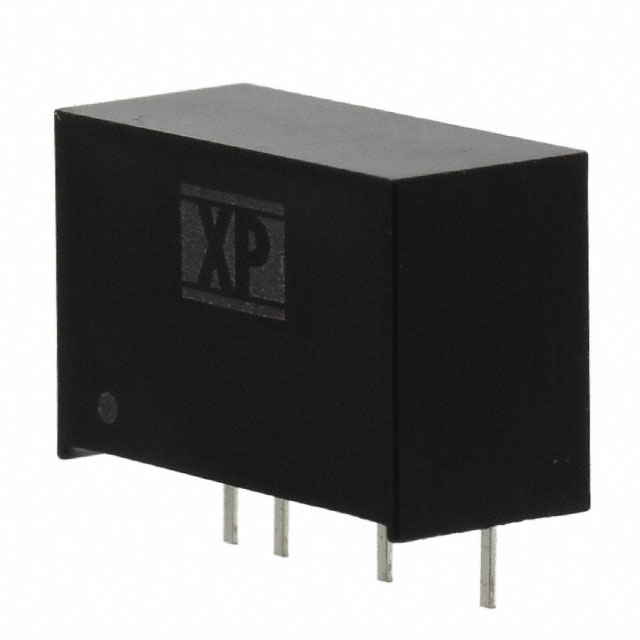

ITW2415SA
ActiveXP POWER
DC DC CONVERTER 15V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ITW2415SA
ActiveXP POWER
DC DC CONVERTER 15V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ITW2415SA |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.67 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 11 mm |
| Size / Dimension [z] | 0.43 " |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.00 | |
| 5 | $ 9.70 | |||
| 10 | $ 9.40 | |||
| 25 | $ 9.00 | |||
| 100 | $ 8.40 | |||
Description
General part information
ITW2415 Series
Isolated Module DC DC Converter 1 Output 15V 67mA 18V - 36V Input
