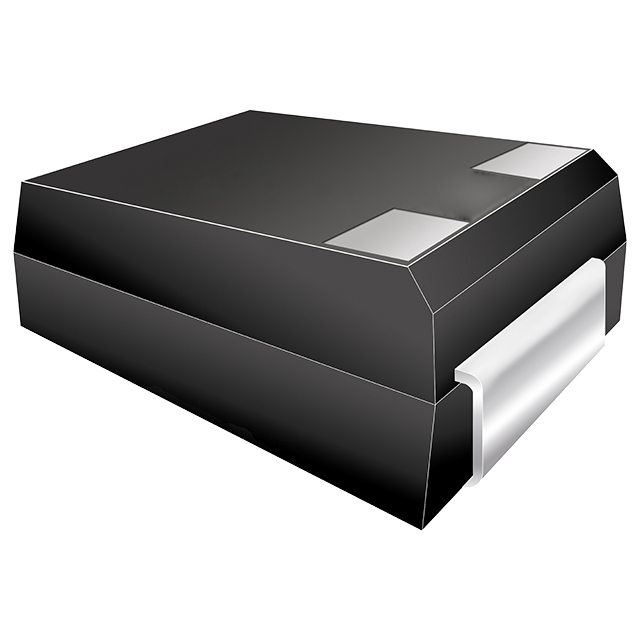

T530X337M010AHE010

Active

KEMET

TANTALUM POLYMER CAPACITOR, 330 ΜF, ± 20%, 10 V, X, 0.01 OHM, 2917 [7343 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T52x,T530 Series, KO-CAP®+3

T530X337M010AHE010

Active

KEMET

TANTALUM POLYMER CAPACITOR, 330 ΜF, ± 20%, 10 V, X, 0.01 OHM, 2917 [7343 METRIC]

Deep-Dive with AI

DocumentsDatasheet T52x,T530 Series, KO-CAP®+3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T530X337M010AHE010

Capacitance	330 µF
ESR (Equivalent Series Resistance)	10 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

T530X Series

Part	Voltage - Rated	Package / Case	Package / Case	Lifetime @ Temp.	Capacitance	ESR (Equivalent Series Resistance)	Type	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Manufacturer Size Code	Features
KEMET T530X337M010AHE010	10 V	7343 Metric	2917	2000 Hrs	330 µF	10 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X108M2R5ATE006	2.5 V	7343 Metric	2917	2000 Hrs	1000 µF	6 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X477M006ATE005	6.3 V	7343 Metric	2917	2000 Hrs	470 µF	5 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X108M2R5ATE004	2.5 V	7343 Metric	2917	2000 Hrs	1000 µF	4 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X687M006ATE010	6.3 V	7343 Metric	2917	2000 Hrs	680 µF	10 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X337M010ATE010	10 V	7343 Metric	2917	2000 Hrs	330 µF	10 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X687M006AHE010	6.3 V	7343 Metric	2917	2000 Hrs	680 µF	10 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X687M004AHE010	4 V	7343 Metric	2917	2000 Hrs	680 µF	10 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X337M010AHE004	10 V	7343 Metric	2917	2000 Hrs	330 µF	4 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose
KEMET T530X158M2R5AHE005	2.5 V	7343 Metric	2917	2000 Hrs	1.5 mF	5 mOhm	Molded	Surface Mount	0.169 "	4.3 mm	-55 °C	125 °C	20 %	4.3 mm	0.287 "	7.3 mm	0.169 "	X	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.46
		10	$ 5.60
		50	$ 5.03
		100	$ 4.37
	Digi-Reel®	1	$ 6.46
		10	$ 5.60
		50	$ 5.03
		100	$ 4.37
	Tape & Reel (TR)	500	$ 3.95
		1000	$ 3.66
		2500	$ 3.59
Newark	Each (Supplied on Full Reel)	400	$ 3.98
		800	$ 3.87
		1600	$ 3.64
		2400	$ 3.47

Description

General part information

T530X Series

330 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 10mOhm @ 100kHz

Documents

Technical documentation and resources

Datasheet

T530X337M010AHE010

Deep-Dive with AI

T530X337M010AHE010

Deep-Dive with AI

Technical Specifications

T530X Series

Pricing

Description

T530X Series

Documents

Datasheet

T52x,T530 Series, KO-CAP®

Product Change Notice EN

Technical Data Sheet EN

Manufacturer Catalogue EN

T530X Series
