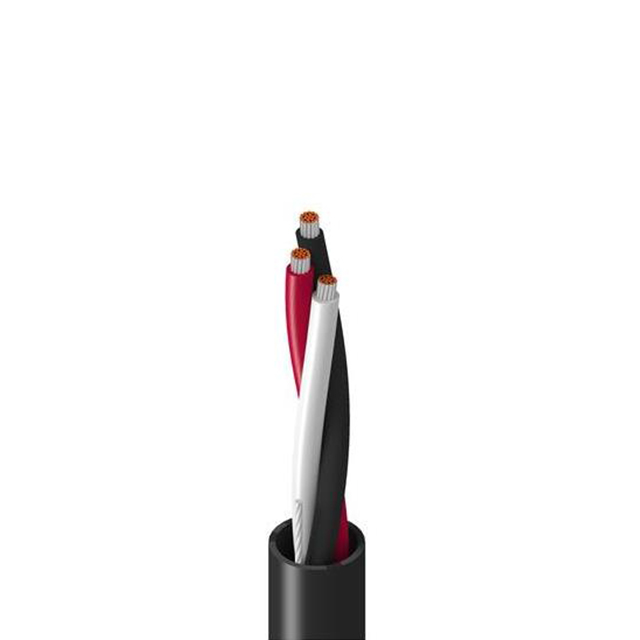

Specification	9494 060U1000

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	29 AWG
Features	Rip Cord
Jacket (Insulation) Diameter	0.274 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	1000 ft
Number of Conductors	3
Number of Conductors - Triad	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Ratings	UL, 2464, Style
Usage	Instrumentation
Voltage	300 V
Wire Gauge	16 AWG

9494 Series

Part	Conductor Insulation	Wire Gauge	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Strand Count	Conductor Strand Gauge	Features	Voltage	Conductor Material	Jacket (Insulation) Material	Number of Conductors - Triad	Number of Conductors	Ratings	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness	Length	Jacket Color	Cable Type	Usage
Belden Inc. 9494 060U1000	Poly-Vinyl Chloride (PVC)	16 AWG	-30 °C	105 °C	19	29 AWG	Rip Cord	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	1	3	2464 Style UL	0.274 in	0.037 in	1000 ft	Chrome	Conductor Multi	Instrumentation
Belden Inc. 9494 0602500	Poly-Vinyl Chloride (PVC)	16 AWG	-30 °C	105 °C	19	29 AWG	Rip Cord	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	1	3	2464 Style UL	0.274 in	0.037 in	2500 ft	Chrome	Conductor Multi	Instrumentation
