TXR54AB9W-1005BI

Active

TE Connectivity Aerospace, Defense and Marine

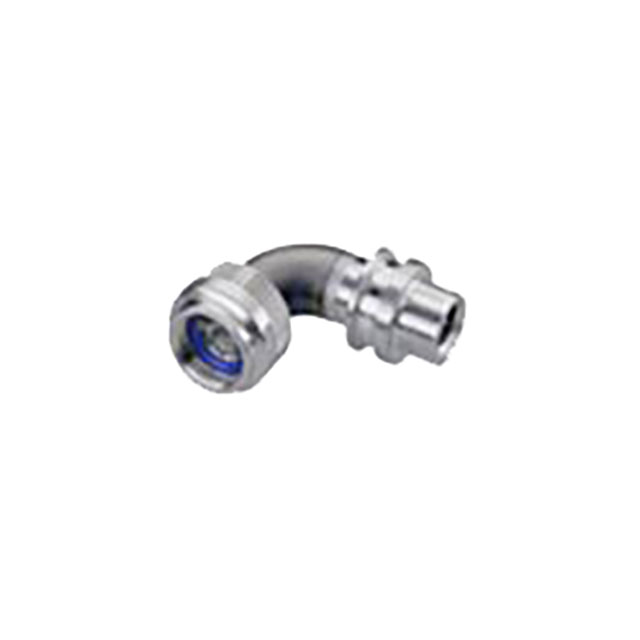

CONN BACKSHLL ADPT SZ11 OLIV M15

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHLL ADPT SZ11 OLIV M15

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXR54AB9W-1005BI	TXR54AB9W Series

Cable Exit	90 °	90 °
Cable Opening [custom]	7.92 mm	7.92 - 15.88 mm
Cable Opening [custom]	0.312 in	0.312 - 0.625 in
Color	Olive Drab	Olive Drab
Diameter - Outside [diameter]	0.827 in	0.827 - 1.28 in
Diameter - Outside [diameter]	21 mm	21 - 32.5 mm
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 Braid, 1 Tinel Ring, 1 Backshell	1 Braid, 1 Tinel Ring, 1 Backshell
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum	Aluminum
Plating	Cadmium	Cadmium
Shell Size - Insert	11	11 - 17
Shielding	Shielded	Shielded
Thread Size	M15x1	M25x1, M15x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

CONN BACKSHLL ADPT SZ17 OLIV M25

Part	Material	Ingress Protection	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thread Size	Plating	Cable Exit	Includes	Features	Shell Size - Insert	For Use With/Related Products	Shielding	Cable Opening [custom]	Cable Opening [custom]	Color
TE Connectivity Aerospace, Defense and Marine TXR54AB9W-1610BI	Aluminum	Environment Resistant	Backshell, Heat Shrink Adapter	32.5 mm	1.28 in	M25x1	Cadmium	90 °	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	17	MIL-DTL-38999 Series III, IV	Shielded	15.88 mm	0.625 in	Olive Drab
TE Connectivity Aerospace, Defense and Marine TXR54AB9W-1005BI	Aluminum	Environment Resistant	Backshell, Heat Shrink Adapter	21 mm	0.827 in	M15x1	Cadmium	90 °	1 Backshell, 1 Braid, 1 Tinel Ring	Tinel Lock	11	MIL-DTL-38999 Series III, IV	Shielded	7.92 mm	0.312 in	Olive Drab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 317.59

General part information

Olive Drab Connector Backshell, Heat Shrink Adapter M15x1 11
