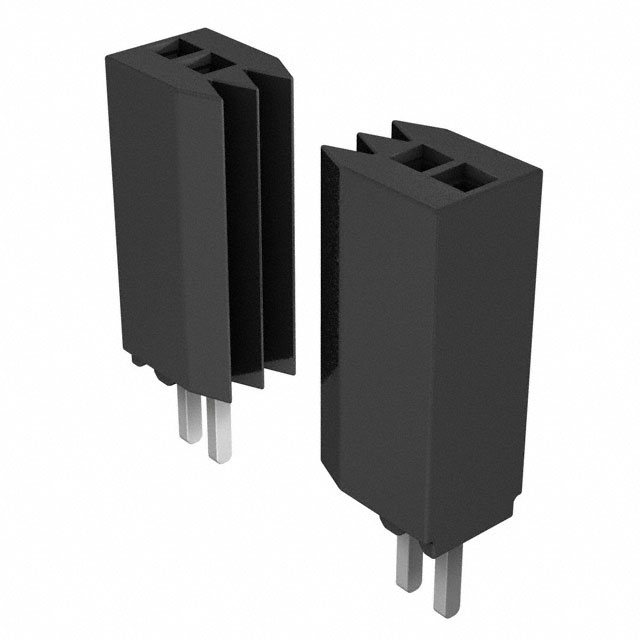

SMS-104-01-S-S

Active

Samtec Inc.

CONN RCPT 4POS 0.05 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 4POS 0.05 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS-104-01-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Number of Positions	Number of Positions Loaded	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Fastening Type	Termination	Mounting Type	Contact Finish - Mating	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. SMS-104-02-G-D	8	All	2	125 °C	-55 °C	Gold	2.54 mm	0.1 in	5 A	0.076 µm	3 µin	Liquid Crystal Polymer (LCP)	Black	Square	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	Solder	Through Hole	Gold	Receptacle	Forked	4.83 mm	0.19 in	0.335 "	8.51 mm	0.25 çm	10 çin
Samtec Inc. SMS-104-01-S-S	4	All	1	125 °C	-55 °C	Tin			5 A			Liquid Crystal Polymer (LCP)	Black	Square	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	Solder	Through Hole	Gold	Receptacle	Forked	2.54 mm	0.1 in	0.335 "	8.51 mm	0.76 Ám	30 Áin
Samtec Inc. SMS-104-01-G-D	8	All	2	125 °C	-55 °C	Gold	2.54 mm	0.1 in	5 A	0.076 µm	3 µin	Liquid Crystal Polymer (LCP)	Black	Square	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	Solder	Through Hole	Gold	Receptacle	Forked	2.54 mm	0.1 in	0.335 "	8.51 mm	0.25 çm	10 çin
