Description
General part information
ER6230 Series

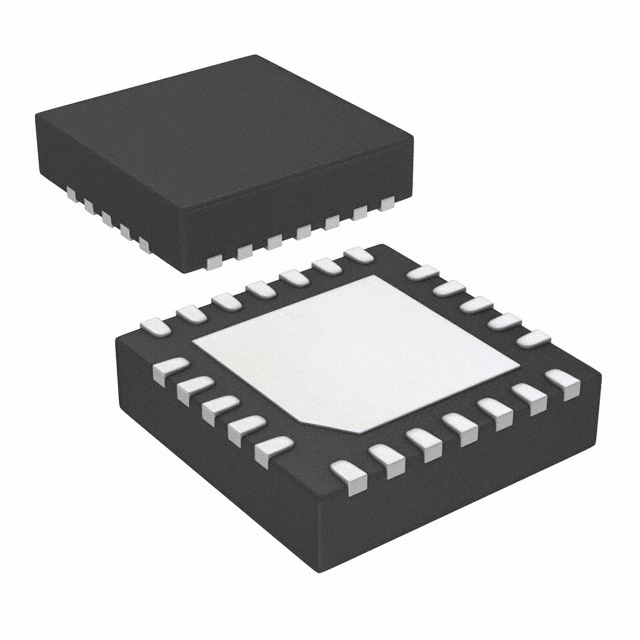

Buck Switching Regulator IC Positive Programmable 0.75V 1 Output 3A 24-VFQFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | ER6230QI |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 1.9 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | 24-VFQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | 24-QFN |
| Package Width | 4 mm |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Input (Max) | 6.6 V |
| Voltage - Input (Min) | 2.7 V |
| Voltage - Output (Max) | 6.33 V |
| Voltage - Output (Min/Fixed) | 0.75 V |
