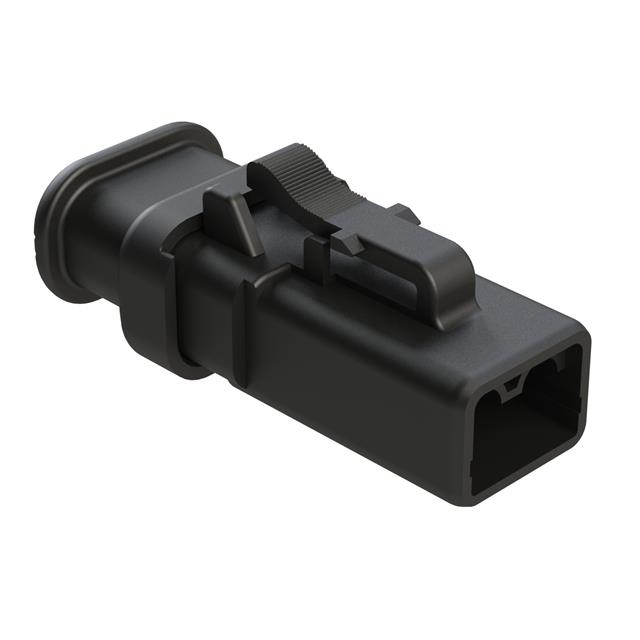

ATP06-2S-SR01BK

Active

Amphenol Sine Systems Corp

2 POSITION PLUG, SOCKET, STRAIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATP06-2S-SR01BK

Active

Amphenol Sine Systems Corp

2 POSITION PLUG, SOCKET, STRAIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATP06-2S-SR01BK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Cap (Cover), IP69K, Strain Relief, IP68, Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATP06-2S Series

Part	Contact Type	Insulation Material	Color	Features	Contact Termination	Number of Positions	Mounting Type	Connector Type	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Cable Termination	Wire Type	Wire Gauge [Max]	Wire Gauge [Min]
Amphenol Sine Systems Corp ATP06-2S-RD01BK	Female Socket	Thermoplastic	Black	IP67 Reduced Wire Seals Sealed	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-SR02BK	Female Socket	Thermoplastic	Black	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-EC01	Female Socket	Thermoplastic	Gray		Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C	Contacts Not Included
Amphenol Sine Systems Corp ATP06-2S-SR01BK	Female Socket	Thermoplastic	Black	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-KIT01	Female Socket		Gray	Wedge Lock		2	Free Hanging (In-Line)	Plug	1	Latch Lock				Crimp	Discrete	14 AWG	12 AWG
Amphenol Sine Systems Corp ATP06-2S-MM01	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Reduced Wire Seals	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S	Female Socket	Thermoplastic	Gray	Sealed	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C	Contacts Not Included
Amphenol Sine Systems Corp ATP06-2S-SR01	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C
Amphenol Sine Systems Corp ATP06-2S-SR02	Female Socket	Thermoplastic	Gray	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	2	Free Hanging (In-Line)	Plug	1	Latch Lock	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.15
		10	$ 1.00
		25	$ 0.96
		50	$ 0.94
		100	$ 0.89
		250	$ 0.81
		500	$ 0.75

Description

General part information

ATP06-2S Series

2 Rectangular Connectors - Housings Plug Black
