56K508-200N5

Obsolete

Rosenberger

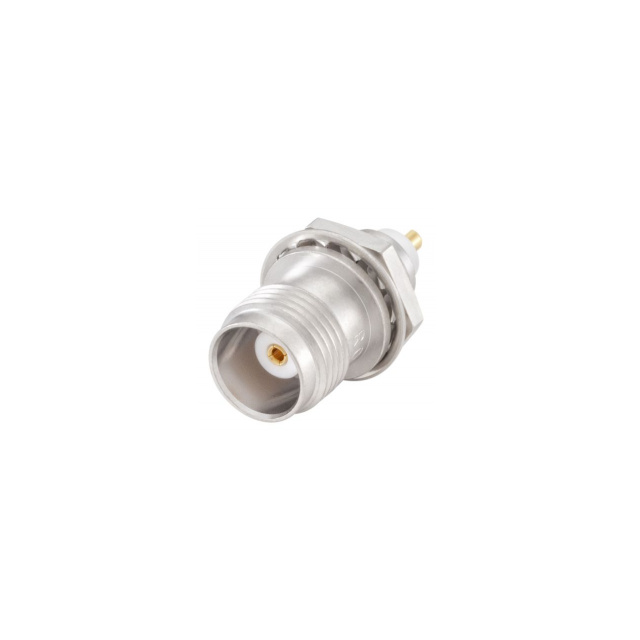

TNC BULKHEAD JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

TNC BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	56K508-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Material	Center Contact Plating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Dielectric Material	Number of Ports	Connector Style	Frequency - Max [Max]	Housing Color	Center Contact Material	Body Finish	Connector Type	Mating Cycles	Shield Termination	Mounting Feature	Impedance
Rosenberger 56K508-200N5	Brass	Gold	Solder Cup	-25 °C	110 °C	500 V	Polytetrafluoroethylene (PTFE)	1	TNC	10 GHz	Silver	Beryllium Copper	White Bronze	Female Socket Jack	500	Solder	Bulkhead - Rear Side Nut	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
