IQ1030 2202

Active

APM HEXSEAL

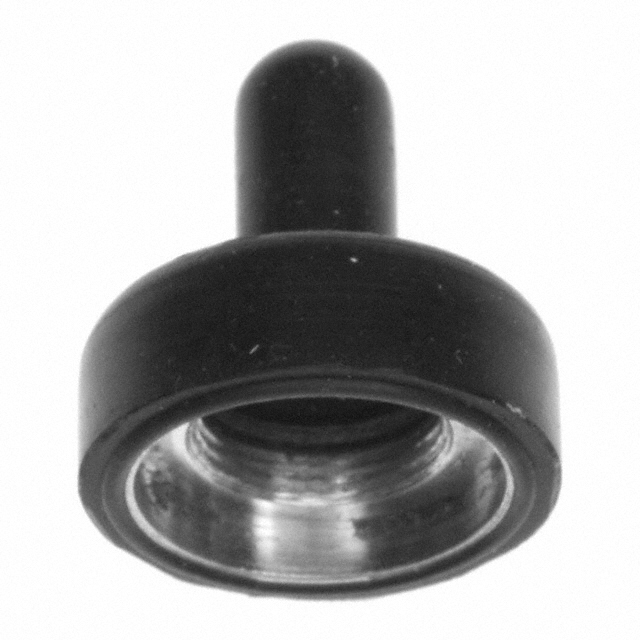

TOGGLE FULL BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	IQ1030 2202

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Color	Black
Features	Bonded Concentric Mounting Nut
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.975 in
Size / Dimension [z]	24.77 mm
Thread Size	15/32-32 NS-2B
Type	Full Boot, Toggle

TOGGLE FULL BOOT BLACK

Part	Actuator Diameter	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Material	Type	Thread Size	For Use With/Related Products	Ingress Protection	Color	Features	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]
APM HEXSEAL IQ1030 2202	6.35 mm	0.25 in	0.975 in	24.77 mm	Silicone Rubber	Full Boot, Toggle	15/32-32 NS-2B	Multiple Series	IP66/IP68	Black	Bonded Concentric Mounting Nut	Front of Panel	204 °C	-70 °C
