956-025-010R011

Active

NorComp Inc.

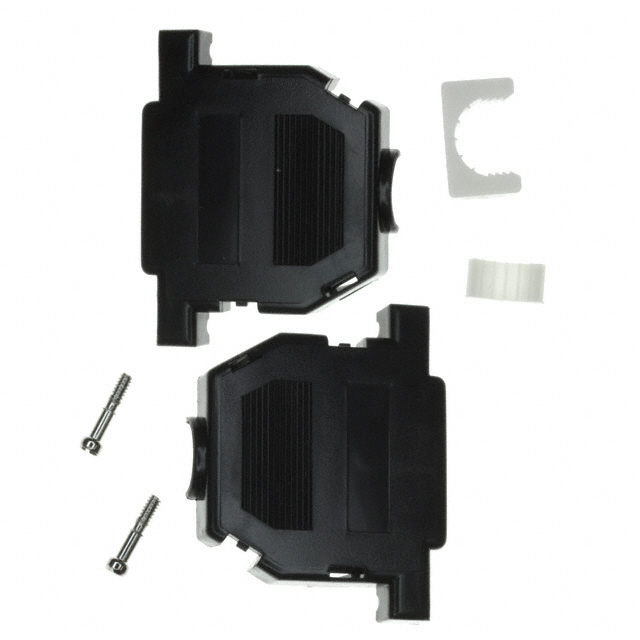

D SUB BACKSHELL, ARMOR 956 SERIES, DB, 180°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY

Find alt

Alpha

956-025-010R011

Active

NorComp Inc.

D SUB BACKSHELL, ARMOR 956 SERIES, DB, 180°, ABS (ACRYLONITRILE BUTADIENE STYRENE) BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

956-025 Series

The 956 series 180° exit snap-together D-Sub Backshell available in 3 industry sizes/positions (9, 15 and 25). The 4-40 mating screw is supplied with backshell. It is available in metalized plastic and plastic.

Technical Specifications

Parameters and characteristics for this part

Specification	956-025-010R011

Accessory Type	Two Piece Backshell
Cable Exit Angle	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	25pos, HD44pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Strain Relief
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	25
Primary Material	Plastic
Shielding	Unshielded

956-025 Series

Part	Cable Exit Angle	Primary Material	Compatible D-Sub Size	Material	Compatible Shell Size	Color	Features	Cable Type	Accessory Type	Shielding	Hardware	Number of Positions
NorComp Inc. 956-025-010R031	180 °	Plastic	25pos HD44pos	Acrylonitrile Butadiene Styrene (ABS)	B	Gray	Mating Screws 4-40	Round	Two Piece Backshell	Unshielded	Strain Relief	25
NorComp Inc. 956-025-010R011	180 °	Plastic	25pos HD44pos	Acrylonitrile Butadiene Styrene (ABS)	B	Black	Mating Screws 4-40	Round	Two Piece Backshell	Unshielded	Strain Relief	25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Backshell Reference Guide
